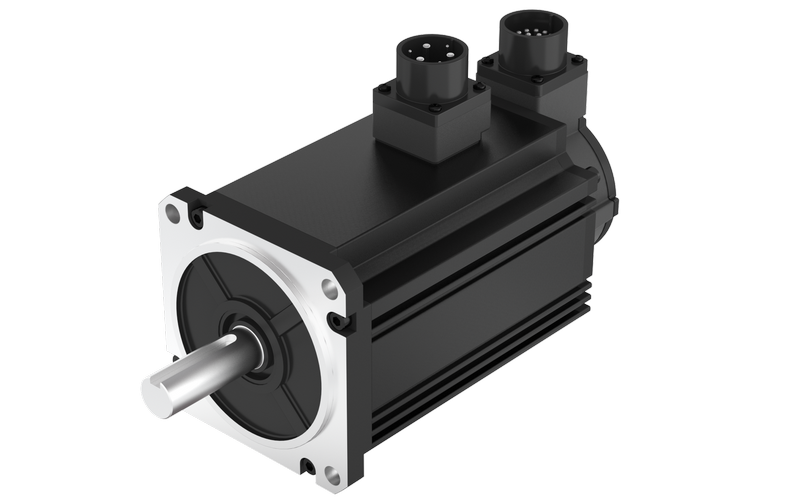

FL110SV

Product Servo Motor

110mm servo motor, 1500-2000W, 48VDC, 220VDC

option:

本质特征（Characteristic）	叁数(Parameter)
编号规则器案例(Encoder type)	1、光电材料简码器 Optical encoder2、磁商品旋转编码器 Magnetic encoder3、弯曲电压器Resolver备注名称：多个分辩率可以，增长量式、对于值式可以。Note: Multiple resolutions are available；Incremental and absolute values are available.
径向过载( Max radial force )	630N @ 20mm from the flange	现状先决条件Environmental conditions	利用率环境温度表： -20℃~ +50℃；Temperature: -20℃~ +50℃采用情况发生干湿度：≤90%RH（无凝露）；Relative humidity: ≤90%RH(No dewing)设施实际情况：一别浸蚀、可燃性固体，油滴，颗粒物，海拨高度≤1000m(1000~4000m，降额使用)；Installation environment: Far away active gas,Combustible gas, oil drop, ash.altitude≤1000m(1000~4000m，Derating use)；数据存储现象：-20℃~ +85℃，≤85%RH（无凝露）。Storage Condition: -20℃~ +85℃，≤85%RH(No dewing).
轴上负债( Max axial force )	315N
绝缘层等级(Insulation Class)	Class B
隔离官阶(Protection level)	IP65

案例 (Model）	单元测试(Unit)	FL110SV150		FL110SV200
减半功效(Rated power) Pn	W	1500		2000
另外端电压(Rated voltage) U	V	220VAC	48VDC	220VAC	48VDC
额外的转数(Rated speed) nn	RPM	3000	3000	3000	3000
格外力矩(Rated torque) Tn	N·m	4.77	4.77	6.37	6.37
额外的电压(Rated current) In	A	7.6	43.4	10.1	58
最明显时速(Maximum speed) nmax	RPM	5000	5000	5000	5000
较大力矩(Maximum torque) Tm	N·m	14.3	14.3	19.1	19.1
最高直流电(Maximum current) Im	A	22.8	130	30.3	174
电阻值(Line to line resistance) RL	Ω	0.36	0.01	0.29	0.009
电感(Line to line inductance) LL	mH	5.6	0.16	4.8	0.145
反电势指数公式(Back EMF) Ke	V/Krpm	38.1	6.35	38.1	6.63
起动转矩公式(Torque constant) Kt	Nm/A	0.63	0.11	0.63	0.11
电子商务的时候常数(Electrical time constant) τe	ms	15	16	16.5	16.1
广州POS机之前常数（Mechanical time constant) τm	ms	0.48	0.48	0.51	0.53
扭动惯量(Rotor inertia) Jm0	kg.cm²	3.1	3.1	4.1	4.1
移动惯量带刹车器(Rotor inertia with brake) Jm1	kg.cm²	3.47	3.47	4.47	4.47
极数(Number of poles)		10	10	10	10
编码查询器(Encoder)		2500ppr光电公司代码器（增长量式）2500p/rev incremental encoder
手机总长(Motor length) L1	mm	151.5	156.5	168.5		173.5
整体机身大小带汽车鼓式制动器(Motor length with brake) L2	mm	187	192	204		209
权重 (Weight)	Kg	5	5.2	6.7		6.9
参量带刹车器(Weight with brake)	Kg	6	6.2	7.7		7.9

再生能源线的毗连器插头接线处界说见施工图。商品代码器的毗连器接线图界说见cad图纸。

换代机电设备要通过玩家须得订做。

The motor can be designed &manufactured with customized request.

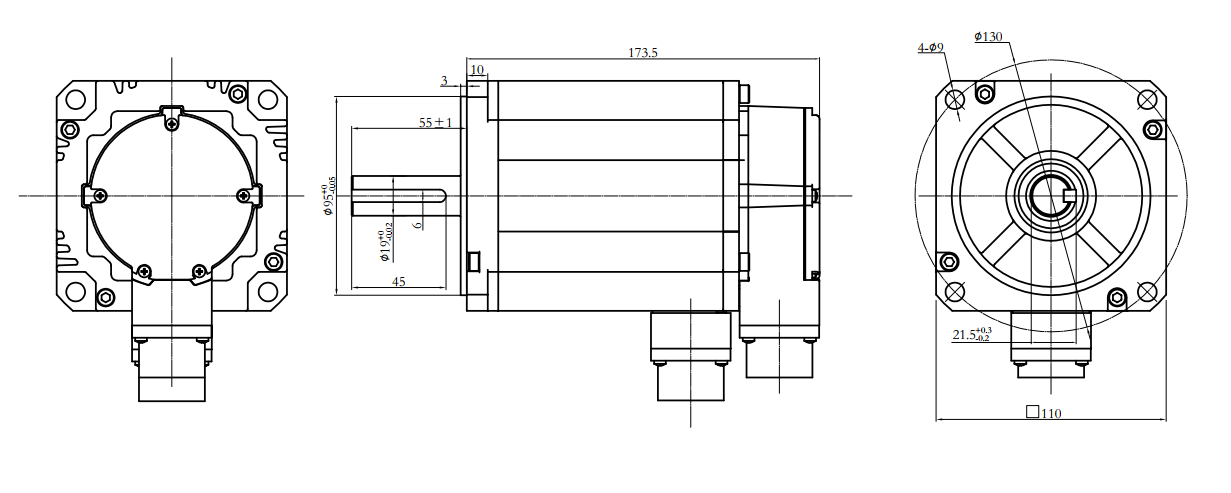

Motor size

Download

FL110SV150-220V-30EA1	99.94 KB
FL110SV200-96V-30EA1	103.79 KB
