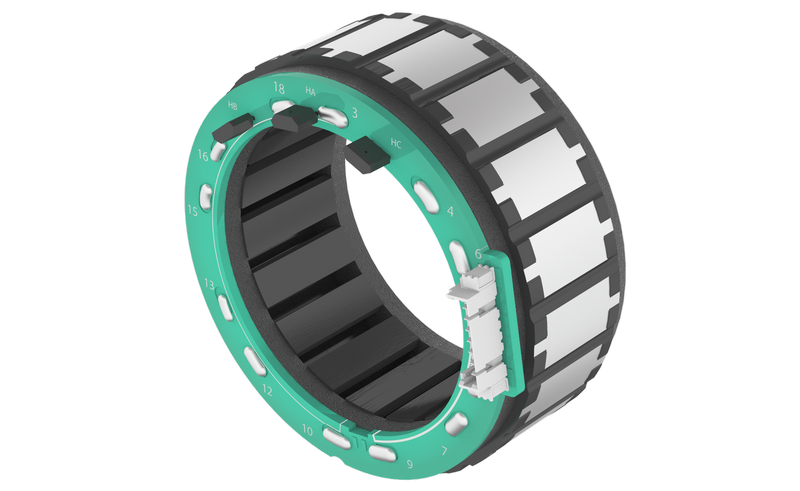

| 名目（Items) | FL50BL15 | FL50BL08 | 公役(Tolerance) |
| 定子外径D | 50mm | 50mm | ±0.031(js9) |
| 定子长度L | 26mm | 20mm | ±1 |
| 转子内径D1 | 30mm | 30mm | (+0.033/0)H8 |
| 转子长度L1 | 22mm | 16mm | ±0.2 |
| 灌胶面外圆E | 47.6mm | 47.6mm | ±0.2 |
| 灌胶面高度F | 2.5mm | 2.5mm | ±0.3 |
| 定子铁芯高度A | 15mm | 8.6mm | ±0.2/-0.3 |
特征提要 ( General Specifications )
| 线圈毗连体例( Winding Type ) | 星形 ( Star connection) |
| 霍尔打击角度看( Hall Effect Angle ) | 120度电多角度 ( Electrical Angle of 120 degree) |
| 介电強度( Dielectric Strength ) | 1000VAC/1S |
| 接地电阻功率( Insulation Resistance ) | 100MΩ, 500VDC |
| 充分利用问题( Operation Ambient ) | -20°C ~ +50°C |
| 绝缘层官阶(Insulation Class) | Class B |
接线申明(Electric Connection)
| 引出来线冷暖色Color | 生成线类型Type | 作用与功效Functions |
| PIN1 | Connector for Hall is optionalType: SM07B-GHS-TB | 热敏 ( NTC2 ) |
| PIN2 | 热敏 ( NTC1 ) |
| PIN3 | 霍尔电源线负 ( GND ) |
| PIN4 | 霍尔 A ( Ha ) |
| PIN5 | 霍尔 B ( Hb ) |
| PIN6 | 霍尔 C( Hc ) |
| PIN7 | 霍尔交流电源正 ( Vcc ) |
| 橙黄色 ( Yellow ) | UL1332 AWG22UL1332 AWG20 | U相 ( Phase U ) |
| 黑色 ( Red ) | V相 ( Phase V ) |
| 玄色 ( Black) | W相 ( Phase W ) |
机电能 (Electrical Specifications)
| 单 位 (Unit) | FL50BL15-48V-35183A | FL50BL08-48V-50170A |
| 极数 ( Number of poles ) |
| 20 | 20 |
| 相数 ( Number of phases ) |
| 3 | 3 |
| 特别直流电压 ( Rated voltage ) | VDC | 48 | 48 |
| 更多惯量 ( Rated torque) | N.m | 0.5 | 0.3 |
| 增加交流电(Rated current) | A | 4.8 | 3.6 |
| 减半效率 ( Rated speed ) | RPM | 3500 | 4800 |
| 木制托盘工作电压 ( Rated power ) | W | 183 | 151 |
| 较大速比(Maximum speed) | RPM | 4600 | 6000 |
| 最高值扭矩 ( Peak torque ) | N.m | 1.5 | 0.96 |
| 顶值工作电流 ( Peak current ) | A | 14.5 | 11.6 |
| 线内阻 ( Line to line resistance ) | ohms@20℃ | 0.77 | 0.9 |
| 线电感 ( Line to line inductance ) | mH | 0.38 | 0.4 |
| 惯量常数 ( Torque constant ) | Nm/A | 0.120 | 0.092 |
| 反电势 ( Back EMF ) | Vrms/KRPM | 7.3 | 5.6 |
| 木材粉碎机机身长宽高 ( Motor length ) | mm | 26 | 20 |
| 净重 ( Weight ) | g | 147 | 95.6 |
| 电力电气时常数(Electrical time constant) | ms | 0.49 | 0.45 |
这一款电气自动化就可以依照投资者要制定。
The motor can be designed &manufactured with customized request.
