FL100SV
FL100SV
Product Servo Motor

FL100SV

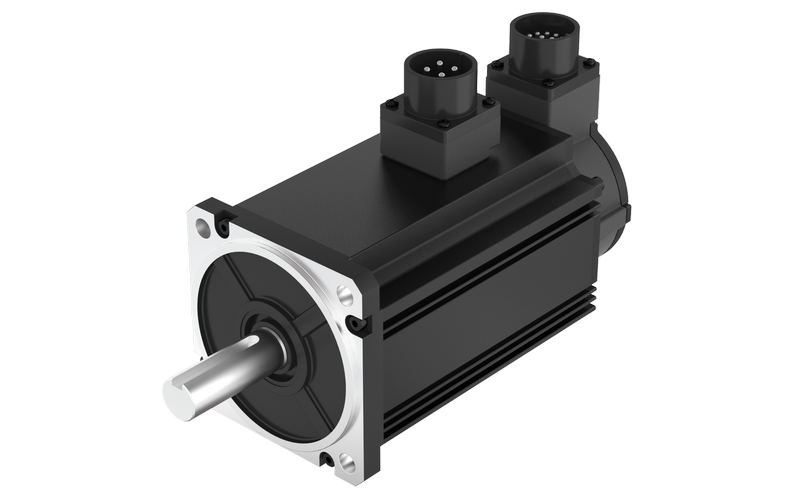

100mm servo motor, 1000-1500W, 48VDC, 220VDC
option:
  • FL100SV
  • FL100SV
  • FL100SV
  • FL100SV

普通手艺特征 (General Technical Information)

优点(Characteristic)参数(Parameter)
商品编号器示例(Encoder type)1、光电公司简码器 Optical encoder2、磁编码查询器 Magnetic encoder3、受压电抗器Resolver备注名称:许多分辩率供选择,增加式、相对性值式供选择。Note: Multiple resolutions are available;Incremental and absolute values are available.
径向电动机扭矩( Max radial force )490N @ 20mm from the flange   症状基本原则Environmental conditions 回收利用症状平均温度: -20℃~ +50℃;Temperature: -20℃~ +50℃应用状态湿球温度:≤90%RH(无凝露);Relative humidity: ≤90%RH(No dewing)保护装置具体情况:久别侵蚀作用、可燃性空气,油滴,尘埃什么意思,气温≤1000m(1000~4000m,降额灵活运用);Installation environment: Far away active gas,Combustible gas, oil drop, ash.altitude≤1000m(1000~4000m,Derating use);存放状况:-20℃~ +85℃,≤85%RH(无凝露)。Storage Condition: -20℃~ +85℃,≤85%RH(No dewing).
轴径负债( Max axial force )196N
隔热官阶(Insulation Class)Class B
隔离品质(Protection level)IP65


机电手艺机能 (Motor Technical Specification)

范本(Model)标段(Unit)FL100SV100FL100SV150
其他的最大功率(Rated power) PnW10001500
木制托盘直流电压(Rated voltage) UV220VAC48VDC220VAC48VDC
附加时速(Rated speed) nnRPM3000300030003000
其他的转距(Rated torque) TnN·m3.183.184.774.77
30%电流值(Rated current) InA5.031.87.543.4
极限发动机转速(Maximum speed) nmaxRPM5000500050005000
明显电动机扭矩(Maximum torque) TmN·m7710.510.5
最好瞬时电流(Maximum current) Im A117016.795.5
阻值(Line to line resistance) RLΩ0.820.0220.540.015
电感(Line to line inductance)  LLmH7.40.25.20.15
反电势公式(Back EMF) KeV/Krpm386.18386.48
力矩数值(Torque constant) KtNm/A0.630.10.630.11
电气公司阶段常数(Electrical time constant) τems999.610
机械是常数(Mechanical time constant) τmms0.460.470.430.29
弹出惯量(Rotor inertia) Jm0kg.cm21.31.31.841.84
上去惯量带刹车系统器(Rotor inertia with brake) Jm1kg.cm21.671.672.212.21
极数(Number of poles)
10101010
编写代码器(Encoder)
2500ppr光电子识别码器(增加量式)2500p/rev incremental encoder
设备时长(Motor length)  L1mm137142159164
后盖的长度带制动系统器(Motor length with brake) L2mm172177194199
份量 (Weight)Kg3.733.84.74.8
信噪比带制动系统器(Weight with brake)Kg4.734.85.75.8


毗连器接线申明 (Electric Connection)

能源技术线的毗连器连接线界说见cad图纸。商品编号器的毗连器连接线界说见设计草图。



这一款机电工程专业是可以采用潜在客户是需要个人定制。

The motor can be designed &manufactured with customized request.


Motor size



FL100SV10



FL100SV15





机能曲线 (Performance Curve)





Download
FL100SV150-220V-30EA1 99.72 KB
FL100SV100-220V-30EA1 100.12 KB
