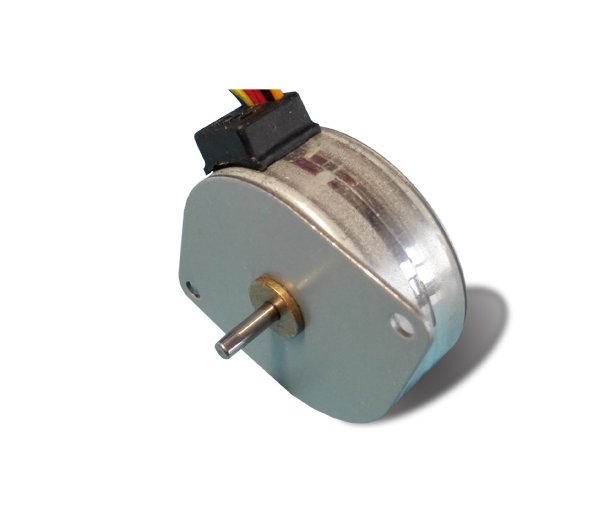

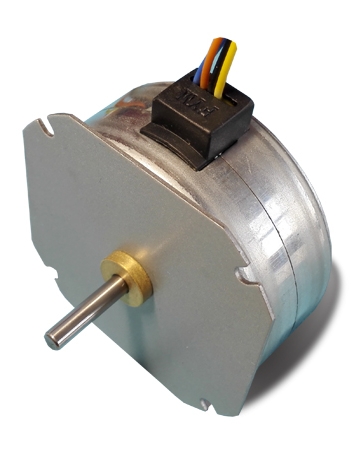

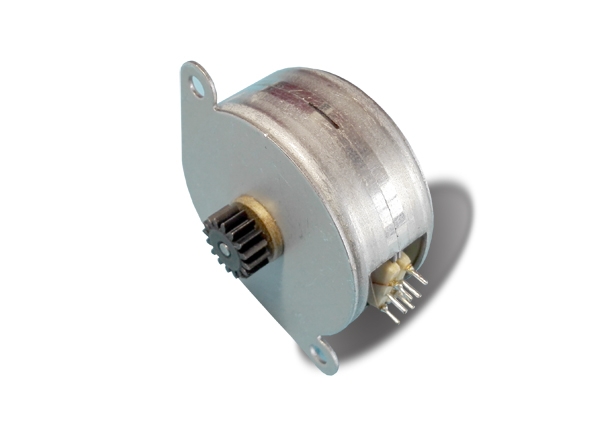

Cooperation| Item | Specifications |
| 步距角导致精度Step Angle Accuracy | ±8% (整步负载full step, no load) |
| 功率电阻公役Resistance Accuracy | ±10% |
| 电感公役Inductance Accuracy | ±20% |
| 升温Temperature Rise | 80。C Max.(三倍电压电流，2雷同电rated current,2 phase on) |
| 问题温度因素Ambient Temperature | -20℃+50℃ |
| 电绝缘功率电阻Insulation Resistance | 100MΩMin. ,500VDC |
| 介电強度Dielectric Strength | 500VAC/1s |
| 径向缝隙Shaft Radial Play | 0.06Max. (450 g-load) |
| 轴上空隔Shaft Axial Play | 0.08Max. (450 g-load) |
| 产品型号Model | 步距角Step Angle(Deg.) | 相数No. ofPhase | 直流电压Voltage (V) | 相交流电Current/Phase(A) | 相内阻Resistance/Phase(ohms) | 堅持扭力HoldingTorque(g.cm) | 地位载荷DetentTorque(g.cm) | 定子惯量RotorInertia(g.cm^2) | 插头接线处图WireDiagram |
| PM3522-01A | 15 | 2 | 5 | 0.46 | 11 | 335 | 125 | 7.5 | A |
| PM3522-02A | 15 | 4 | 5 | 0.46 | 11 | 300 | B | ||
| PM3522-01B | 7.5 | 4 | 5 | 0.862 | 5.8 | 550 | |||
| PM3522-02B | 7.5 | 2 | 5 | 0.5 | 10 | A | |||
| PM3522-03B | 7.5 | 2 | 12 | 0.2 | 608 | ||||
| PM3516-01 | 7.5 | 4 | 12 | 0.255 | 47 | 300 | 65 | B | |
| PM3516-02 | 7.5 | 2 | 5 | 0.42 | 12 | 350 | 75 | A | |
| PM4222-01A | 7.5 | 4 | 12 | 0.8 | 15 | 800 | 210 | 9.6 | B |
| PM4222-02A | 7.5 | 2 | 4.2 | 0.6 | 7 | 800 | 210 | A | |
| PM4222-01B | 7.5 | 2 | 12 | 0.13 | 95 | 550 | 100 | 7.5 | |
| PM4222-02B | 7.5 | 4 | 5 | 0.81 | 6.2 | 600 | 110 | B | |
| PM4217-01 | 7.5 | 4 | 12 | 0.24 | 50 | 600 | 90 | 9.6 | |
| PM4217-02 | 7.5 | 2 | 5 | 0.59 | 8.6 | 500 | 100 | A | |
| PM4930-01 | 7.5 | 2 | 5 | 0.9 | 5.5 | 1700 | 350 | <14.5 | |
| PM5725-01 | 7.5 | 4 | 12 | 0.6 | 21 | 1500 | 425 | <12.5 | B |
| PM5725-02 | 7.5 | 2 | 5.6 | 0.625 | 9 | 1200 | A |
这一款机械设备就可以是以潜在客户是需要定做。
The motor can be designed &manufactured with customized request.
