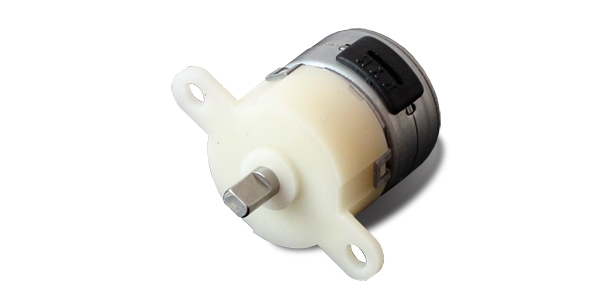

Cooperation| Item | Specifications |
| 步距角精准度Step Angle Accuracy | ±7% (整步，变压器空载full step, no load) |
| 电容公役Resistance Accuracy | ±10% |
| 电感公役Inductance Accuracy | ±20% |
| 温度上升Temperature Rise | 65K Max. ambient temperature 40。C65K 状态工作温度40℃ |
| 问题水温Ambient Temperature | -10。C~+50。C |
| 耐压电阻值Insulation Resistance | 100MΩMin. ,500VDC |
| 耐压品质Insulation Class | Class E |
| 介电力度Dielectric Strength | 650VAC for one second, leakage current 1mA650VAC 一分钟， 泄电电压1mA |
| 机型Model | 步距角Step Angle(Deg.) | 相数No. ofPhase | 输出功率Voltage(V) | 相工作电流Current/Phase(A) | 相电阻值Resistance/Phase(ohms) | 相电感Inductance/Phase(mH) | 牵入扭力Pull-in Torque (g.cm)5VDC | 最大化牵入频率和次数Max. Pull-In Rate (pps)No Load,5VDC | 坚定不移扭矩HoldingTorque(g.cm) | 加速度比Ratio | 信噪比Weight (g) |
| PMG1550-01 | 18/50 | 2 | 5 | 0.5 | 10 | 2.3 | 360 @200pps | 1280 | 1350 | 1:50 | 12.2 |
| PMG1550-03 | 18/50 | 2 | 5 | 0.5 | 10 | 2.8 | 140@200pps | 1150 | 2000 | 1:50 | 13 |
| PMG15102-01 | 18/102.5 | 2 | 5 | 0.5 | 10 | 2.3 | 350@200pps | 1000 | 2000 | 1:102.5 | 12.2 |
改款机械设备要根据的客户须得制作。
The motor can be designed &manufactured with customized request.
