17N.m integrated QDD motor module

Product Joint module

Small but strong, Beyond imagination 17Nm integrated QDD motor module The motor body, reducer and driver are three-in-one, with a peak torque of 17Nm and a weight of only 380g. It has high-performance electronic control and closed-loop temperature control algorithms, and provides debugging software to ensure stable mass production delivery.

option:

Inquiry Contact

Parameter
Overall Dimensions
Download
Cooperation

Electrical Specs:

Item	Spec
Magnetic Encoder	1 pc
Rated Voltage	36V
Voltage Range	24-48V
Rated Output Power	170w ±10%
Rated Torque	6N.m
Peak Torque	17N.m
Running Direction	CW/CCW
Temperature Range	-20~50℃
Humidity Range	5~85%
Storage Temperature Range	-30~70℃
Insulation Level	Class B
No-load Speed	315 rpm ± 10%
No-load Current	0.5 Arms
Rated Load Speed	275 rpm ± 10%
Rated Load Phase Current	7Apk ± 10%
Peak Phase Current	23Apk ± 10%
Insulation Resistance/ Stator Winding	DC 500VAC，100M 0hms
High Voltage Resistance/ Stator and Casing	600VAC, 1s, 2mA
Back-EMF	0.096 Vrms/rpm ±10%
Line Resistance	0.55Ω±10%
Torque Constant	1.22 N.m/Arms
Inductance	486±20%μH

Mechanical Specs

Item	Spec
Weight	405g
Pole	28
Phase	3
Drive Method	FOC
Reduction ratio	7.75 : 1

Performance Curves

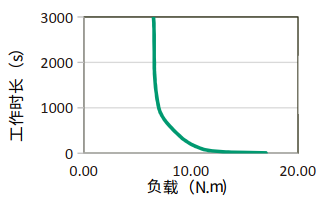

Max Overload

Load (N.m)	Operating Time (s)
6	rated
6.5	3000
11	100
15	18
17	10

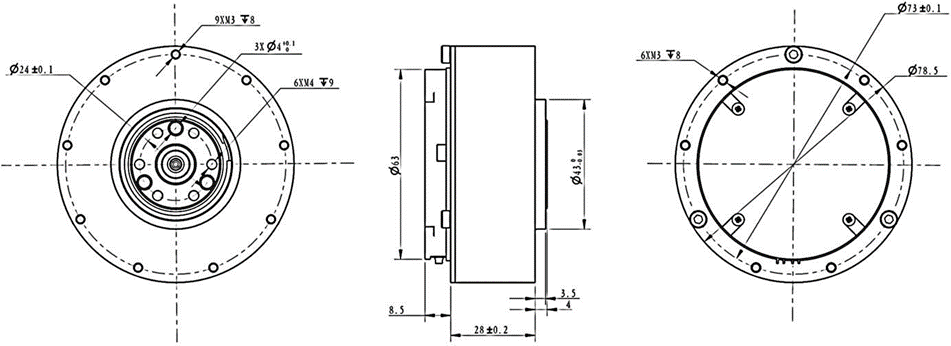

Motor size

Download

17Nm Small Joint Manual

2.8 MB
