| +5V | F/R | SV | PG | GND | GND | +Vp |
| O | O | O | O | O | O | O |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| 有特点提要 ( General Specifications ) |
| 绕阻毗连体例 ( Winding Type ) | 四角形 ( Delta connection) |
| 霍尔造谣维度 ( Hall Effect Angle ) | 120度电视场角 ( Electrical Angle of 120 degree) |
| 径向接缝处 ( Radial Play ) | 0.025mm@460g |
| 径向裂缝 ( Axial Play ) | 0.08mm@4000g |
| 较大径向短路电流 ( Max radial force ) | 10N 距法兰片10mm ( 10mm From the flange) |
| 最大程度轴上额定负载 ( Max axial force ) | 10N |
| 介电挠度 ( Dielectric Strength ) | 600VAC/1S |
| 绝缘热敏电阻热敏电阻 ( Insulation Resistance ) | 100MΩ, 500VDC |
| 具体情况高温 ( Ambient Temperature ) | -20°C ~ +50°C |
| 绝缘电阻官阶 (Insulation Class) | Class B |
| 插头接线处声明函(Electric Connection) |
| Pin No |
| 效率Functions |
|
| 1 | +5V | 工作电压插入(VOLTAGE OUTPUT) |
| 2 | F/R | 刹车有节制(ROTATING DIRECTION) |
| 3 | SV | 控速端电压0—5VDC (SPEED VOLTAGE 0—5VDC) |
| 4 | PG | 传输率脉冲信号填写(TTL) (SPEED PULSE OUTPUT(TTL) |
| 5 | GND | 与地面(GND) |
| 6 | GND | 接地系统(GND) |
| 7 | +Vp | +24VDC(DC POWER INPUT +24VDC) |
机电能 (Electrical Specifications)
| 单 位 (Unit) | FL42BLS01-IE | FL42BLS02-IE | FL42BLS03-IE | FL42BLS04-IE |
| 极数 ( Number of poles ) |
| 8 |
| 相数 ( Number of phases ) |
| 3 |
| 其他的额定电压 ( Rated voltage ) | VDC | 24 |
| 增加起动转矩 ( Rated torque) | N.m | 0.0625 | 0.125 | 0.185 | 0.25 |
| 保持持续运行电动机扭矩 ( Continuous stall torque) | N.m | 0.075 | 0.15 | 0.22 | 0.3 |
| 附加速率单位 ( Rated speed ) | RPM | 4000 | 4000 | 4000 | 4000 |
| 木制托盘电功率 ( Rated power ) | W | 26 | 52 | 78 | 104 |
| 阀值电动机扭矩 ( Peak torque ) | N.m | 0.11 | 0.18 | 0.28 | 0.28 |
| 阀值直流电 ( Peak current ) | A | 3.5 | 5.0 | 7.5 | 7.5 |
| 线电阻值 ( Line to line resistance ) | ohms@20℃ | 1.5 | 0.8 | 0.43 | 0.3 |
| 线电感 ( Line to line inductance ) | mH | 2.1 | 1.2 | 0.71 | 0.5 |
| 转距常数 ( Torque constant ) | N.m/A | 0.033 | 0.036 | 0.037 | 0.035 |
| 反电势 ( Back EMF ) | Vrms/KRPM | 2.45 | 2.71 | 2.74 | 2.62 |
| 移动惯量 ( Rotor inertia ) | g.cm2 | 24 | 48 | 72 | 96 |
| 后盖时间 ( Motor length ) L | mm | 77 | 97 | 137 | 157 |
| 净重 ( Weight ) | Kg | 0.45 | 0.6 | 0.8 | 0.95 |
该电气够，并按照客需要环保定制家具。
The motor can be designed &manufactured with customized request.

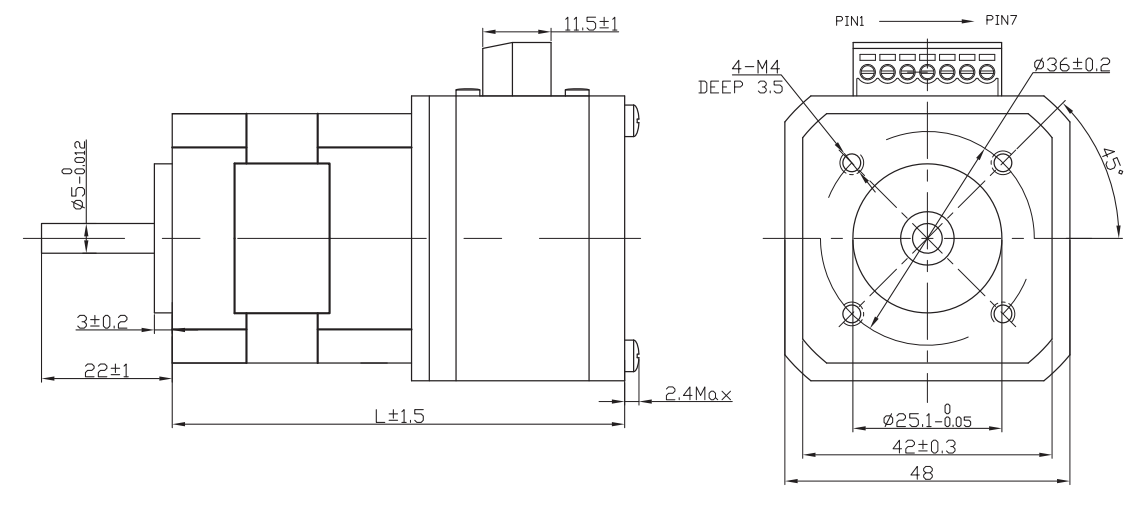

机电尺寸
