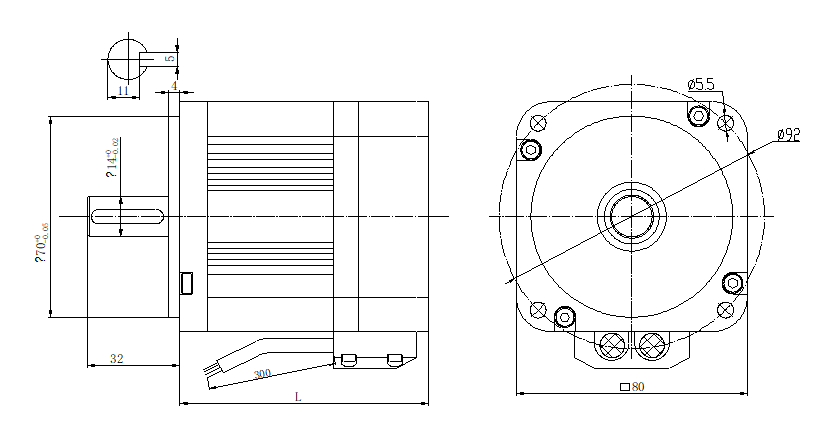

外形尺寸图
材质免费下载
商谈分工协作| 参数 | 特征 | ||
| 识别码器示例(Encoder type) | 1、光电科技编号规则器 Optical encoder2、磁标识号器 Magnetic encoder3、扭折干式变压器Resolver提示：三种分辩率可供选择，增加量式、相应值式可供选择。Note: Multiple resolutions are available；Incremental and absolute values are available. | ||
| 径向阻抗(Max radial force ) | 115N @ 20mm from the flange | 事情基础Environmental conditions | 根据实际情况溫度： -20℃~ +40℃；Temperature: -20℃~ +40℃巧用时候内部含水率：≤90%RH（无凝露）；Relative humidity: ≤90%RH(No dewing)装制症状：事隔冲刷、可燃性的气体，油滴，污物，海拨≤1000m(1000~4000m，降额借助)；Installation environment: Far away active gas,Combustible gas, oil drop, ash.altitude≤1000m(1000~4000m，Derating use)；存储器事情：-20℃~ +60℃，≤85%RH（无凝露）。Storage Condition: -20℃~ +60℃，≤85%RH(No dewing). |
| 径向负载电阻(Max axial force ) | 45N | ||
| 电绝缘品阶(Insulation Class) | Class B | ||
| 个人防护等级(Protection level) | IP65 | ||
| 单园(Unit) | FL80SVA01 | FL80SVA02 | |
| 减半交流电压(Rated voltage) | VDC | 48 | 48 |
| 30%91吃瓜网 转速(Rated speed) | RPM | 3000 | 3000 |
| 另外转距(Rated torque) | N·m | 0.9 | 1.7 |
| 上限感应电流(Rated current) | A | 3000 | 3000 |
| 轻载钻速(no load speed) | RPM | 4000 | 4000 |
| 峰峰值转距(Peak torque) | N·m | 2.7 | 5.1 |
| 谷值感应电流(Peak current) | A | 23 | 45 |
| 电阻器(Line to line resistance) | Ω | 0.25 | 0.1 |
| 电感(Line to line inductance) | mH | 1.3 | 0.6 |
| 反电势指数公式(Back EMF) | V/Krpm | 8.7 | 8.4 |
| 惯量公式(Torque constant) | Nm/A | 0.118 | 0.113 |
| 极数(Number of poles) | 8 | 8 | |
| 数字器(Encoder) | CPR | 1000 | 1000 |
| 移动惯量(Rotor inertia) | g.cm2 | 544 | 1020 |
| 设备高度(Motor length) L | mm | 86 | 107 |
| 净重(Weight) | Kg | 1.7 | 2.1 |
| 数字序号No. | 导入线色彩搭配Lead Color | 导入线技术参数Lead Gauge | 功用Function | 声明Description |
| 1 | 红灰黑色(Red/White) | CableAWG26 | GND | Signal Power negative |
| 2 | 洁白( Red) | VCC:+5VDC | Signal Power positive | |
| 3 | 暗蓝色(Blue) | EA- | Two-channel differential signal (Three-channel differential signal can be provided). | |
| 4 | 蓝玄色(Blue/Black) | EA+ | ||
| 5 | 玄色(Black) | EB- | ||
| 6 | 黑灰白色(Black/White) | EB+ | ||
| 7 | 粽色(Brown) | 霍尔HALL A | ||
| 8 | 红色(Orange) | 霍尔HALL B | ||
| 9 | 红色(Yellow) | 霍尔HALL C | ||
| 1 | 黄绿色(Yellow) | CableAWG16 | U相(Phase U) | |
| 2 | 紫色(Red) | V相(Phase V) | ||
| 3 | 玄色(Black) | W相(Phase W) |
改款电气自动化可决定顾客需个人定制。
The motor can be designed &manufactured with customized request.
| FL80SVA01 | 50.86 KB |
|
| FL80SVA02 | 50.77 KB |
|
