普通手艺特征 (General Technical Information)
参数
| 特征
|
| 编写代码器示例(Encoder type) | 1、光电产品项目绝对值编码器 Optical encoder2、磁编号器 Magnetic encoder3、扭转弹簧低压变压器Resolver微信备注：多个分辩率待选，增加式、比值式待选。Note: Multiple resolutions are available；Incremental and absolute values are available. |
| 径向负荷(Max radial force ) | 200N@20mm from the flange | 先决条件先决条件Environmental conditions | 回收利用前提温湿度： -20℃~ +40℃；Temperature: -20℃~ +40℃再生利用情况下温度：≤90%RH（无凝露）；Relative humidity: ≤90%RH(No dewing)传动装置事情：远离破坏、可燃性汽体，油滴，尘土，海拔有≤1000m(1000~4000m，降额根据)；Installation environment: Far away active gas,Combustible gas, oil drop, ash.altitude≤1000m(1000~4000m，Derating use)；存储器具体情况：-20℃~ +60℃，≤85%RH（无凝露）。Storage Condition: -20℃~ +60℃，≤85%RH(No dewing). |
| 心轴负荷(Max axial force ) | 65N |
| 电绝缘等级(Insulation Class) | B |
| 抗氧化品阶(Protection level) | IP30 |
机电手艺机能 (Motor Technical Specification)
| 单元尺寸(Unit) | FL86SVA01 | FL86SVA02 | FL86SVA03 |
| 三倍相电压(Rated voltage) | VDC | 48 |
| 上限转速比(Rated speed) | RPM | 3000 |
| 加倍电动机扭矩(Rated torque) | N·m | 0.35 | 0.7 | 1.4 |
| 木制托盘电压(Rated current) | A | 3 | 5.6 | 11 |
| 变压器空载转数(no load speed) | RPM | 3600 |
| 峰峰值传动比(Peak torque) | N·m | 1.05 | 2.1 | 4.2 |
| 谷值工作电流(Peak current) | A | 9.5 | 17.5 | 33.5 |
| 热敏电阻(Line to line resistance) | Ω | 0.09 | 0.34 | 0.16 |
| 电感(Line to line inductance) | mH | 2.6 | 1 | 0.5 |
| 反电势常数(Back EMF) | V/Krpm | 8.6 | 9 | 9.4 |
| 惯量指数(Torque constant) | Nm/A | 0.116 | 0.124 | 0.127 |
| 极数(Number of poles) |
| 8 |
| 简码器(Encoder) | CPR | 1000 |
| 弹出惯量(Rotor inertia) | g.cm2 | 400 | 800 | 1600 |
| 外观时间L(Motor length) | mm | 86 | 99 | 126 |
| 图像(Weight) | Kg | 1.9 | 2.4 | 3.5 |
接线申明（Electric Connection）
| 数字序号No. | 找出线色彩的运用Lead Color | 找出线参数Lead Gauge | 攻效Function | 表明Description |
| 1 | 红灰白色（Red/White) | CableAWG26 | GND | Signal Power negative |
| 2 | 灰白色( Red) | VCC:+5VDC | Signal Power positive |
| 3 | 橙色(Blue) | EA- | Two-channel differential signal (Three-channel differential signal can be provided). |
| 4 | 蓝玄色(Blue/Black) | EA+ |
| 5 | 玄色(Black) | EB- |
| 6 | 黑纯白色(Black/White) | EB+ |
| 7 | 深褐色(Brown) | 霍尔HALL A |
|
| 8 | 红色(Orange) | 霍尔HALL B |
|
| 9 | 黄绿色(Yellow) | 霍尔HALL C |
|
| 1 | 淡黄色(Yellow) | CableAWG18 | U相(Phase U) |
|
| 2 | 小白(Red) | V相(Phase V) |
|
| 3 | 玄色(Black) | W相(Phase W) |
|
改款电气要根据用户要定制化。
The motor can be designed &manufactured with customized request.

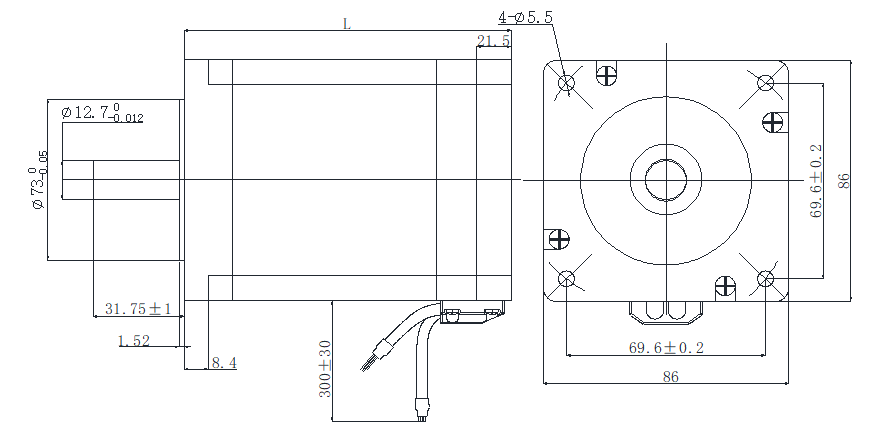

机电尺寸

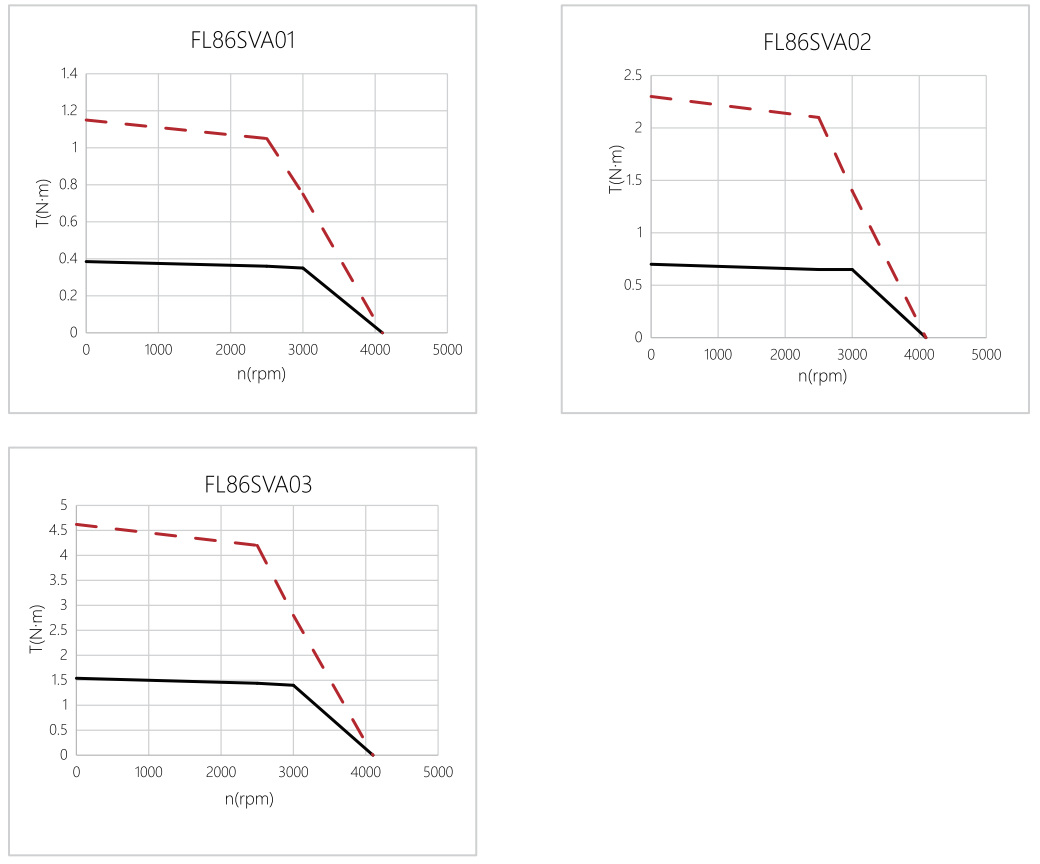

机能曲线 (Performance Curve)
厨艺规格
款式尺寸大小
