| 编写代码器样例(Encoder type) | 1、光电技术编写代码器 Optical encoder2、磁编码查询器 Magnetic encoder3、扩张干式变压器Resolver注：很多分辩率自选，增长量式、相较值式自选。Note: Multiple resolutions are available；Incremental and absolute values are available. | ||
| 径向过载(Max radial force ) | 28N @ 20mm from the flange | 状态前提条件Environmental conditions | 利于环境温暖： -20℃~ +40℃；Temperature: -20℃~ +40℃凭借问题对环境湿度的：≤90%RH（无凝露）；Relative humidity: ≤90%RH(No dewing)系统设计条件：阔别多年冲刷、可燃性乙炔气，油滴，玦尘，海拔高度≤1000m(1000~4000m，降额灵活运用)；Installation environment: Far away active gas,Combustible gas, oil drop, ash.altitude≤1000m(1000~4000m，Derating use)；存储空间情况下：-20℃~ +60℃，≤85%RH（无凝露）。Storage Condition: -20℃~ +60℃，≤85%RH(No dewing). |
| 轴上根据(Max axial force ) | 10N | ||
| 绝缘层等级(Insulation Class) | Class B | ||
| 加固官阶(Protection level) | IP40 | ||
| 摸块(Unit) | FL42SVA01 | FL42SVA02 | FL42SVA03 | FL42SVA04 | |
| 双倍交流电压(Rated voltage) | VDC | 24 | 24 | 24 | 24 |
| 附加带速(Rated speed) | RPM | 5000 | 5000 | 5000 | 5000 |

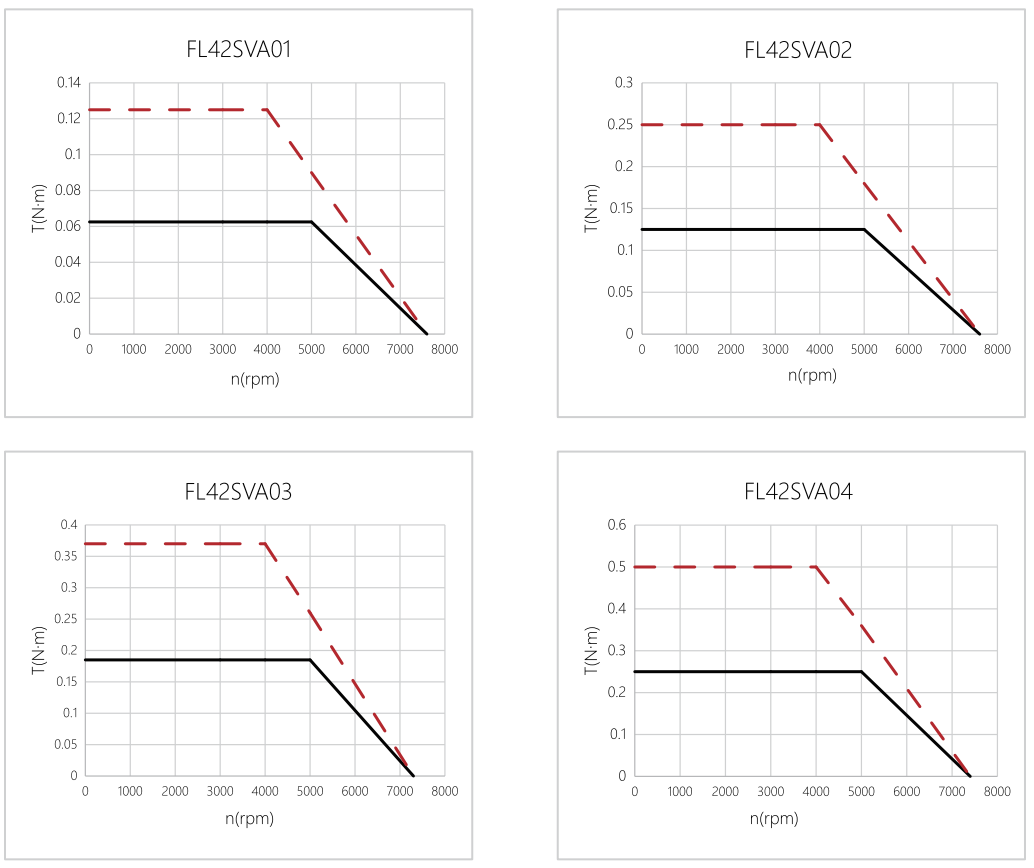

| 特别电动机扭矩(Rated torque) | N·m | 0.0625 | 0.125 | 0.185 | 0.25 |
| 加倍电流值(Rated current) | A | 2.1 | 4 | 6 | 8 |
| 变压器空载转动速度(no load speed) | RPM | 7600 | 7400 | 7300 | 7400 |
| 谷值转距(Peak torque) | N·m | 0.19 | 0.38 | 0.56 | 0.75 |
| 峰峰值感应电流(Peak current) | A | 6.25 | 12 | 18 | 24 |
| 功率电阻(Line to line resistance) | Ω | 1.15 | 0.5 | 0.28 | 0.25 |
| 电感(Line to line inductance) | mH | 1.75 | 0.9 | 0.51 | 0.38 |
| 反电势常数(Back EMF) | V/Krpm | 2.23 | 2.3 | 2.32 | 2.28 |
| 转距常数(Torque constant) | Nm/A | 0.03 | 0.031 | 0.031 | 0.031 |
| 极数(Number of poles) | 8 | 8 | 8 | 8 | |
| 代码器(Encoder) | CPR | 1000 | 1000 | 1000 | 1000 |
| 扭动惯量(Rotor inertia) | g.cm2 | 24 | 48 | 72 | 96 |

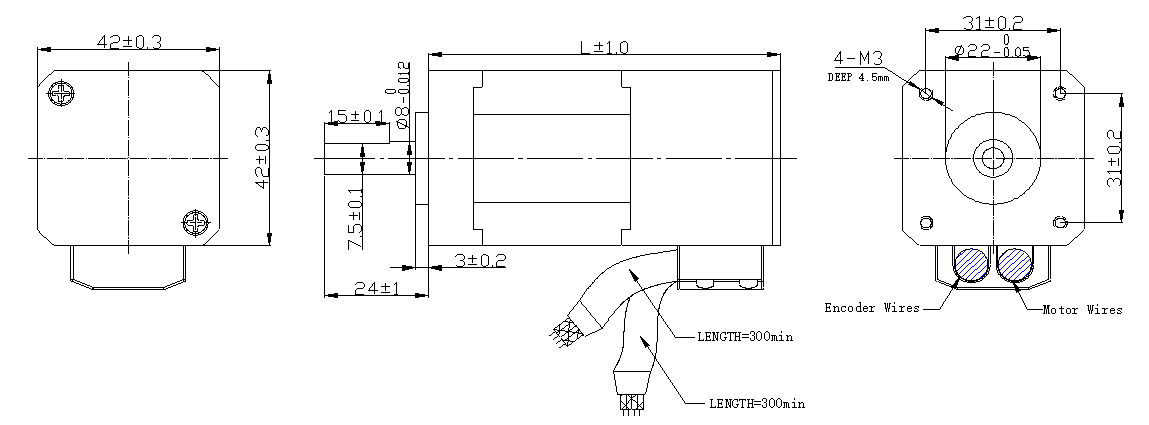

| 木材粉碎机机身间距(Motor length) L | mm | 61.3 | 81.3 | 101.3 | 121.3 |
| 参量(Weight) | Kg | 0.3 | 0.45 | 0.65 | 0.8 |
| 序号顺序No. | 产生线色彩搭配Lead Color | 产生线尺寸Lead Gauge | 功用Function | 声明范文Description |
| 1 | 红黄白色(Red/White) | Cable AWG26 | GND | Signal Power negative |
| 2 | 暗红色( Red) | VCC:+5VDC | Signal Power positive | |
| 3 | 蓝绿色(Blue) | EA- | Two-channel differential signal (Three-channel differential signal can be provided). | |
| 4 | 蓝玄色(Blue/Black) | EA+ | ||
| 5 | 玄色(Black) | EB- | ||
| 6 | 黑灰白色(Black/White) | EB+ | ||
| 7 | 深褐色(Brown) | 霍尔HALL A | ||
| 8 | 黄色(Orange) | 霍尔HALL B | ||
| 9 | 黄白色(Yellow) | 霍尔HALL C | ||
| 1 | 黑色(Yellow) | Cable AWG18 | U相(Phase U) | |
| 2 | 暗红色(Red) | V相(Phase V) | ||
| 3 | 玄色(Black) | W相(Phase W) |
这款机械设备也能，并按照潜在客户必须全屋定制。
The motor can be designed &manufactured with customized request.
| FL42SVA01 | 281.49 KB |
|
| FL42SVA02 | 281.19 KB |
|
| FL42SVA03 | 283.29 KB |
|
| FL42SVA04 | 283.47 KB |
|
