FL32SBL

产品中间的无齿无槽机电工程专业

Φ32mm 高转速无齿无槽机电，24VDC, 13000RPM~17000RPM

选件:

91吃瓜网绕线毗连体例 ( Winding Type )	星形 ( Star connection)
介电的强度 ( Dielectric Strength )	600VAC/1S
绝缘性电阻值( Insulation Resistance )	100MΩ, 500VDC
情况发生湿度 ( Ambient Temperature )	-20°C ~ +50°C
绝缘带品阶 (Insulation Class)	Class B
径向接缝处 ( Radial Play )	0.02mm@4N
径向洞眼 ( Axial Play )	0.14mm@4N
极大径向91吃瓜网负载 ( Max radial force )	10N距法兰片5mm( 5mm From the flange)
最好支承负债( Max axial force)	4N

	单位 (Unit)	FL32SBL64-24V-157130A	FL32SBL50-24V-13075A
极数 ( Number of poles )		4	4
相数 ( Number of phases )		3	3
减半电阻 ( Rated voltage )	VDC	24	24
满载发动机转速 (No load speed)	RPM	17000	13000
负载电压 (No load current)	A	0.75	0.3
加倍电动机扭矩 ( Rated torque)	mN.m	80	60
超额功率 (Rated current)	A	6.74	3.95
附加带宽 ( Rated speed )	RPM	16100	12000
特别91吃瓜网功率 ( Rated power )	W	134.8	75
更多效率 (Rated efficiency)	%	83.1	78.3%
阀值扭矩 ( Peak torque )	mN.m	240	180
谷值直流电 ( Peak current )	A	20.5	11.85
线电阻器 ( Line to line resistance )	ohms@20℃	0.12	0.35
线电感 ( Line to line inductance )	mH	0.015	0.033
力矩常数 ( Torque constant )	mNm/A	13.7	17.56
反电势 ( Back EMF )	Vrms/KRPM	1.02	1.3
护壳-实际情况热扩散系数( Housing - Ambient thermal resistance)	K/W	3.24	3.02
机电工程专业热那时候常数(Motor thermal time constant)	S	630	613
91吃瓜网定子较高准许气温(Max temperature of winding)	℃	155	155
电气成套之时常数(Electrical time constant)	ms	0.125	0.095

改款机械设备还可以遵照合作方还要高端定制。

The motor can be designed &manufactured with customized request.

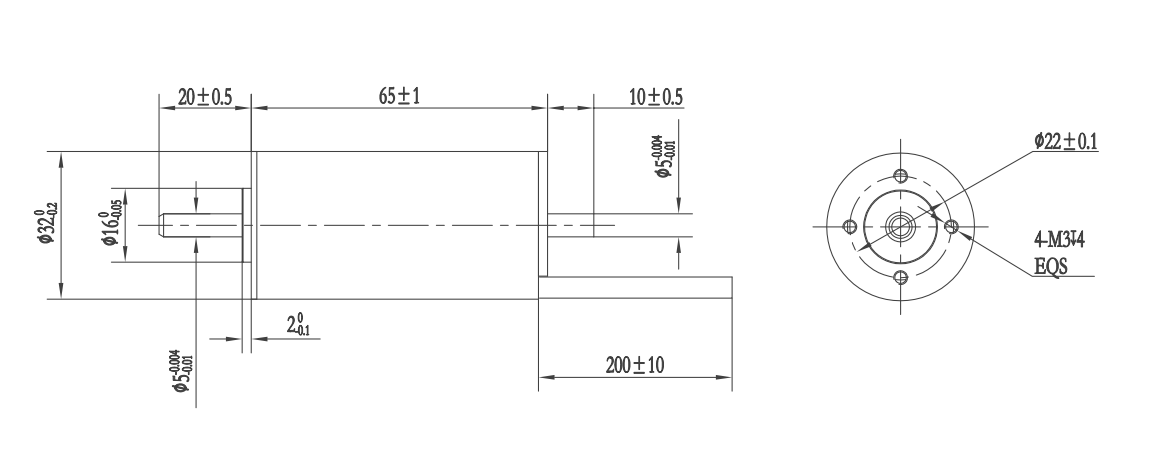

机电尺寸
