热情接待操作| Item | Specifications |
| 步距角精度等级Step Angle Accuracy | ±7% (整步，满载full step, no load) |
| 电阻功率公役Resistance Accuracy | ±10% |
| 电感公役Inductance Accuracy | ±20% |
| 表面温度Temperature Rise | 80K Max. ambient temperature 40。C80K 状况溫度40℃ |
| 时候热度Ambient Temperature | -10。C~+50。C |
| 电接地电阻值Insulation Resistance | 100MΩMin. ,500VDC |
| 隔绝品质Insulation Class | Class E |
| 介电抗弯强度Dielectric Strength | 650VAC for one second, leakage current 1mA650VAC 瞬间， 泄电工作电流1mA |

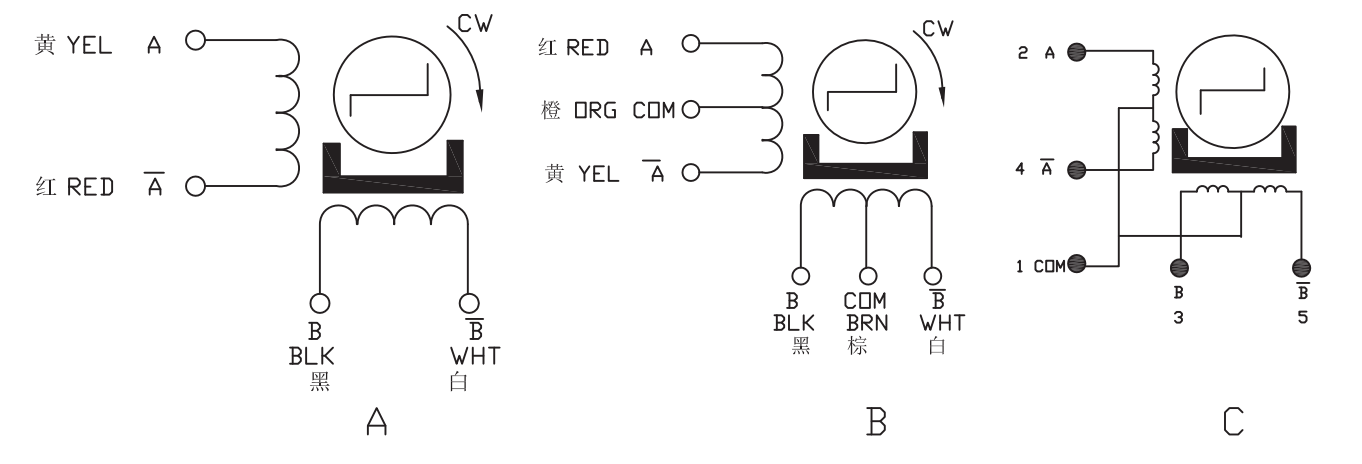

| 款式Model | 步距角Step Angle(Deg.) | 相数No. ofPhase | 电压电流Voltage(V) | 相工作电流Current/Phase(A) | 相电容Resistance/Phase(ohms) | 满载牵入频率No-loadPull-inFrequency(pps) | 牵入最大扭矩 Pull-in Torque (g.cm) | 努力转矩HoldingTorque (g.cm)olHol | 导航定位扭力DetentTorque(g.cm) | 提速比Ratio | 接电源图WireDiagram |

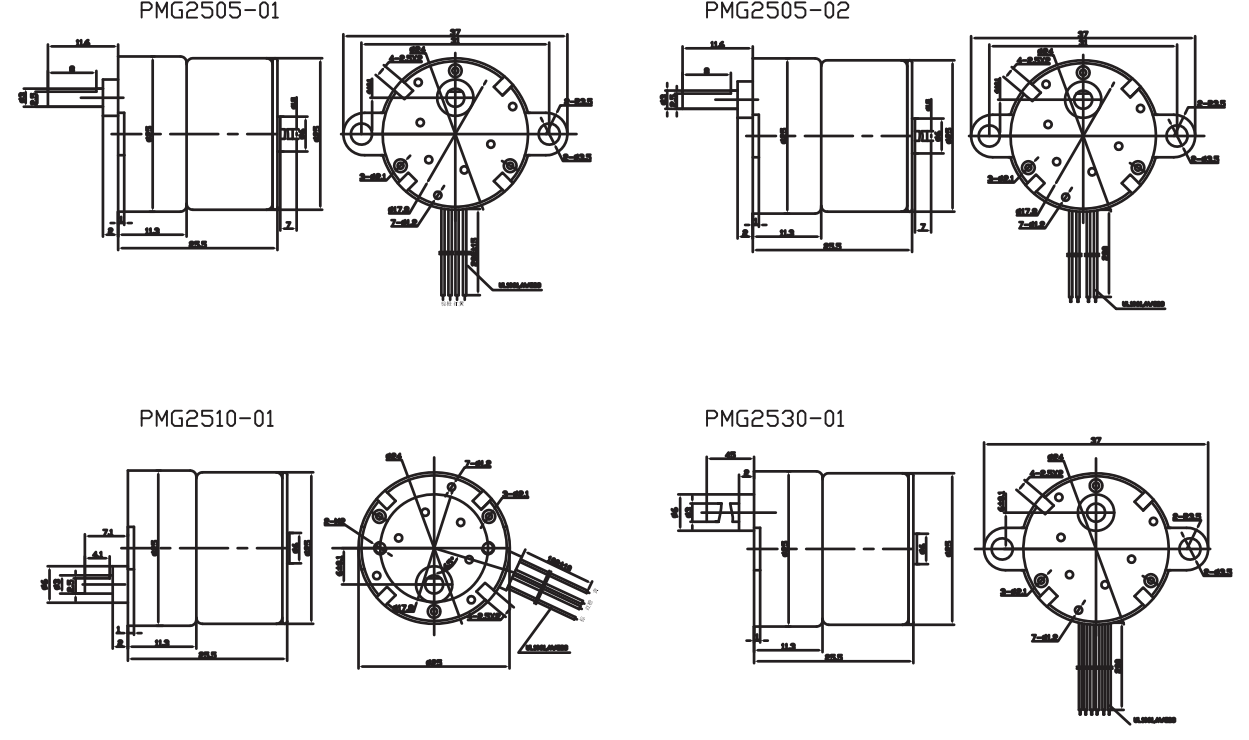

| PMG2505-01 | 7.5/5 | 2 | 2.6 | 0.52 | 5 | 450 | 75 at 200pps | 450 | <150 | 1:5 | A |
| PMG2505-02 | 15/5 | 2 | 3.5 | 0.365 | 9.6 | 420 | 100 at 100pps | 500 | <150 | 1:5 | |
| PMG2510-01 | 7.5/10 | 2 | 2.8 | 0.467 | 6 | 550 | 200 at 200pps | 1400 | <500 | 1:10 | |
| PMG2530-01 | 7.5/30 | 4 | 13.3 | 0.11 | 120 | 680 | 750 at 100pps | 4000 | <1400 | 1:30 | B |

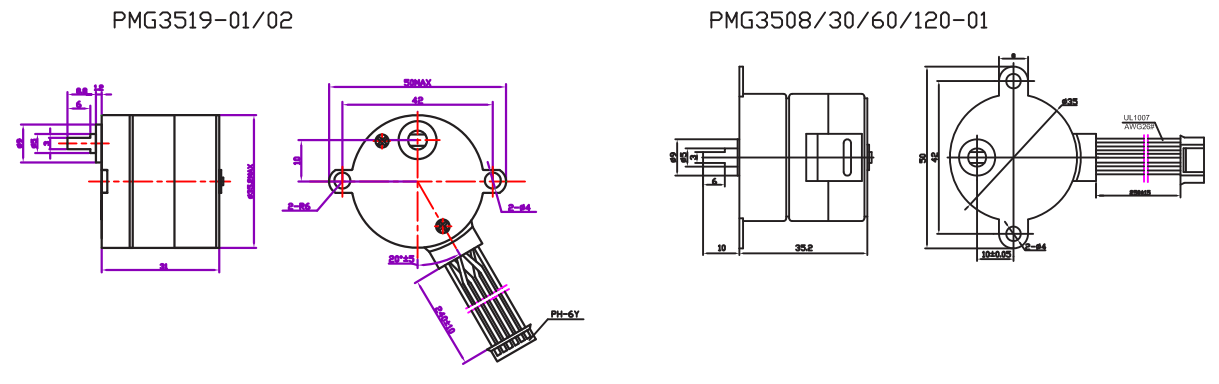

| PMG3519-01 | 7.5/19 | 4 | 24 | 0.218 | 110 | 360 | 2280 at 200pps | 4500 | <2280 | 1:19 | C |
| PMG3519-02 | 7.5/19 | 4 | 12 | 0.4 | 30 | 360 | 1900 at 200pps | 4000 | <2600 | 1:19 | |
| PMG3508-01 | 7.5/8.4 | 4 | 12 | 0.4 | 30 | 500 | 840 at 400pps | 1150 | <500 | 1:8.4 | |
| PMG3530-01 | 7.5/30 | 4 | 12 | 0.4 | 30 | 500 | 3000 at 400pps | 5000 | <1500 | 1:30 | |
| PMG3560-01 | 7.5/60 | 4 | 12 | 0.4 | 30 | 420 | 6000 at 400pps | 8000 | <3000 | 1:60 | |
| PMG35120-01 | 7.5/120 | 4 | 12 | 0.4 | 30 | 400 | 8000 at 300pps | 10000 | <6000 | 1:120 |
该机电工程就可以根据企业要求开发。
The motor can be designed &manufactured with customized request.
