技艺技术参数

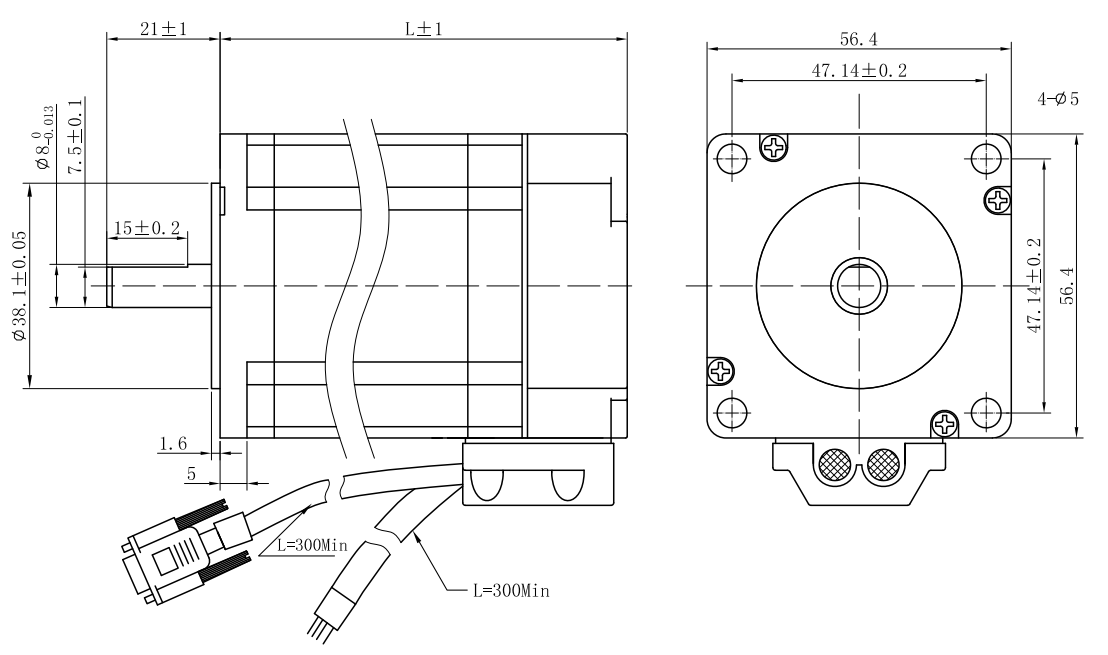

样式长宽高
用料下载软件
约见协调| 特征英文(Characteristic） | 基本参数(Parameter) | ||
| 编码查询器范列(Encoder type) | 1、微电子商品伺服91吃瓜网 Optical encoder2、磁简码器 Magnetic encoder3、扩张电力变压器Resolver备注栏：多种不同分辩率必选择，增量配电网式、较为值式必选择。Note: Multiple resolutions are available；Incremental and absolute values are available. | ||
| 径向负载电阻(Max radial force ) | 75N@20mm from the flange | 状态基本原则Environmental conditions | 根据状态湿度： -20℃~ +40℃；Temperature: -20℃~ +40℃根据条件室内温度：≤90%RH（无凝露）；Relative humidity: ≤90%RH(No dewing)设施条件：一别冲刷、可燃性甲烷气体，油滴，灰尘，海拔有≤1000m(1000~4000m，降额进行)；Installation environment: Far away active gas,Combustible gas, oil drop, ash.altitude≤1000m(1000~4000m，Derating use)；保存现状：-20℃~ +60℃，≤85%RH（无凝露）。Storage Condition: -20℃~ +60℃，≤85%RH(No dewing). |
| 轴上额定负载(Max axial force) | 15N | ||
| 隔热官阶(Insulation Class) | B | ||
| 加固品质(Protection level) | IP30 | ||
| 象限(Unit) | FL57SC10 | FL57SC22 | |
| 相工作电流 (Phase current) | A | 6.0 | 5.6 |

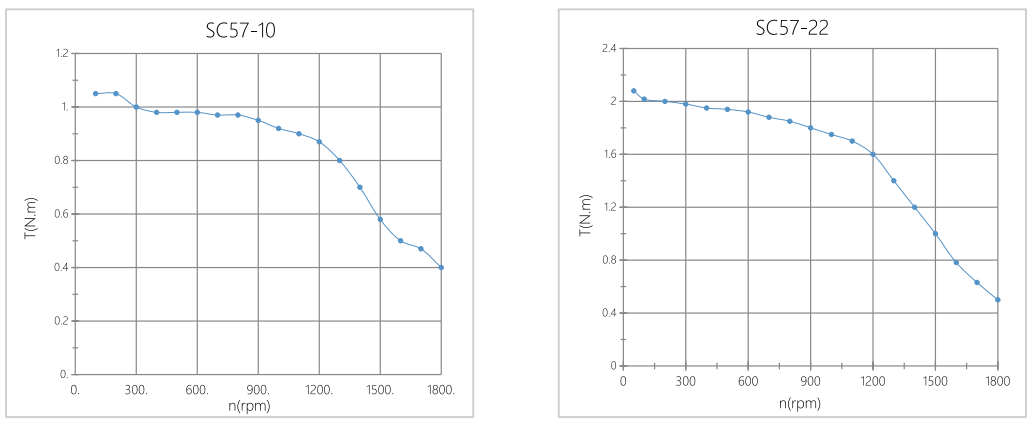

| 追求扭矩 (Holding torque) | N·m | 1.2 | 2.2 |
| 最高的轉速 (Speed ) | rpm | 1800 | 1800 |
| 代码器 (Encoder) | 1000cpr光电科技增长式识别码器1000cpr incremental optical encoder | ||
| 移动惯量 (Rotor inertia) | g.cm2 | 300 | 480 |
| 屏幕大小 (Motor Length) L | mm | 74 | 95 |
| 使用 (Weight ) | Kg | 1 | 1.5 |
| 序列号No. | 导入线特色Lead Color | 产生线规格型号Lead Gauge | 功郊Function | 声明函Description |
| 3 | 红乳白色(Red/White) | CableThree rows of15PIN D-SUB | GND | Signal Power negative |
| 2 | 白(Red) | VCC:+5VDC | Signal Power positive | |
| 13 | 绿色(Blue) | EA- | Two-channel differential signal (Three-channel differential signal can be provided). | |
| 1 | 蓝玄色(Blue/Black) | EA+ | ||
| 12 | 玄色(Black) | EB- | ||
| 11 | 黑紫色(Black/White) | EB+ | ||
| 1 | 玄色(Black) | CableUL2464AWG20 | A相(Phase A) | |
| 2 | 绿(Green) | C相(Phase C) | ||
| 3 | 白色的(Red) | B相(Phase B) | ||
| 4 | 深蓝色(Blue) | D相(Phase D) |
新款上市机电专业够，并按照投资者想要定制化。
The motor can be designed &manufactured with customized request.
| FL57SC22 | 243.83 KB |
|
| FL57SC10 | 253.05 KB |
|
