洽谈合作| 表现(Characteristic） | 技术参数(Parameter) | ||
| 编码查询器样例(Encoder type) | 1、光电材料项目编码器接线 Optical encoder2、磁商品代码器 Magnetic encoder3、受压变电器Resolver备注名称：三种分辩率能选，增减式、对值式能选。Note: Multiple resolutions are available；Incremental and absolute values are available. | ||
| 径向负债(Max radial force ) | 75N@20mm from the flange | 前提条件前提条件Environmental conditions | 充分利用情況高温： -20℃~ +40℃；Temperature: -20℃~ +40℃进行的情况含水率：≤90%RH（无凝露）；Relative humidity: ≤90%RH(No dewing)保护装置情况下：一别侵袭、可燃性气味，油滴，颗粒物，平均海拔≤1000m(1000~4000m，降额利用)；Installation environment: Far away active gas,Combustible gas, oil drop, ash.altitude≤1000m(1000~4000m，Derating use)；储存方式现状：-20℃~ +60℃，≤85%RH（无凝露）。Storage Condition: -20℃~ +60℃，≤85%RH(No dewing). |
| 径向负载电阻(Max axial force) | 15N | ||
| 电绝缘品质(Insulation Class) | B | ||
| 防防品质(Protection level) | IP30 | ||

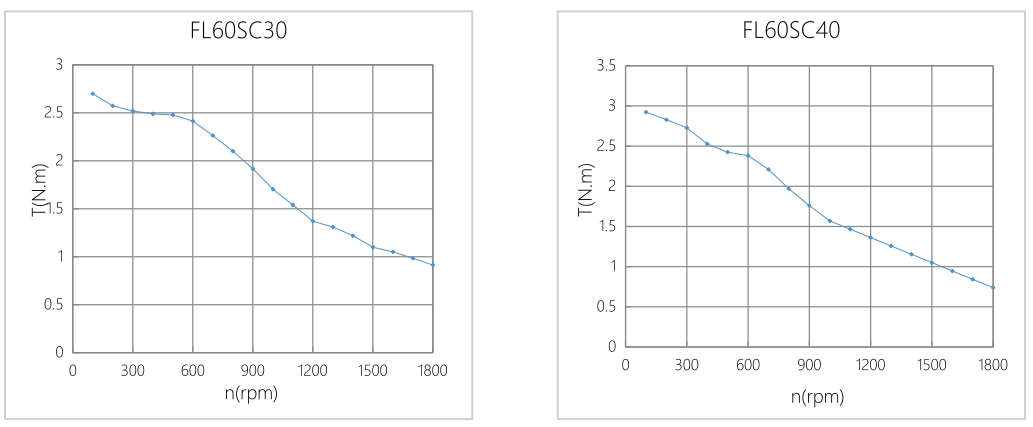

| 单元尺寸(Unit) | FL60SC30 | FL60SC40 | |
| 相直流电 (Phase current) | A | 6.0 | 5.6 |
| 努力扭矩 (Holding torque) | N·m | 3.0 | 3.6 |
| 高达速比 (Speed ) | rpm | 1800 | 1800 |
| 编写代码器 (Encoder) | 1000cpr光电公司增减式数字器1000cpr incremental optical encoder | ||
| 弹出惯量 (Rotor inertia) | g.cm2 | 800 | 860 |

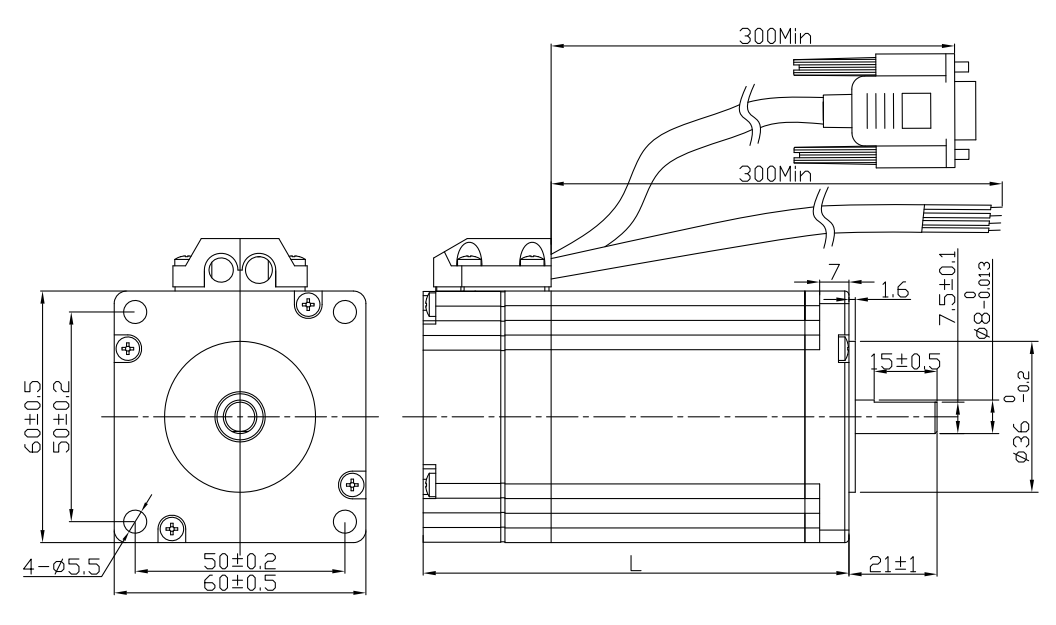

| 木材粉碎机机身总长 (Motor Length) L | mm | 103 | 109 |
| 净重 (Weight ) | Kg | 1.4 | 1.6 |
| 顺序号No. | 引入线色彩搭配Lead Color | 导入线型號Lead Gauge | 功能主治Function | 声明范文Description |
| 3 | 红黑色(Red/White) | CableThree rows of15PIN D-SUB | GND | Signal Power negative |
| 2 | 紫色(Red) | VCC:+5VDC | Signal Power positive | |
| 13 | 海蓝(Blue) | EA- | Two-channel differential signal (Three-channel differential signal can be provided). | |
| 1 | 蓝玄色(Blue/Black) | EA+ | ||
| 12 | 玄色(Black) | EB- | ||
| 11 | 黑小白（Black/White) | EB+ | ||
| 1 | 玄色(Black) | CableUL2464AWG20 | A相(Phase A) | |
| 2 | 浅绿色(Green) | C相(Phase C) | ||
| 3 | 白色的(Red) | B相(Phase B) | ||
| 4 | 颜色(Blue) | D相(Phase D) |
这一款机械能假设按照业主必须订制。
The motor can be designed &manufactured with customized request.
| FL60SC30 | 283.35 KB |
|
| FL60SC40 | 281.83 KB |
|
