活儿产品参数
图行厚度
的原材料使用
洽谈区域合作| 特征（Characteristic） | 参数(Parameter) | ||
| 识别码器样例(Encoder type) | 1、光电产品数字器 Optical encoder2、磁编号器 Magnetic encoder3、转动变电器Resolver备注名称：多个分辩率供选择，指标式、取决于值式供选择。Note: Multiple resolutions are available；Incremental and absolute values are available. | ||
| 径向91吃瓜网 负载(Max radial force ) | 130N@20mm from the flange | 的情况前提条件Environmental conditions | 凭借症状温湿度： -20℃~ +40℃；Temperature: -20℃~ +40℃巧用实际情况空气湿度：≤90%RH（无凝露）；Relative humidity: ≤90%RH(No dewing)配置原因：远离侵袭、可燃性其他气体，油滴，尘灰，海拔高度≤1000m(1000~4000m，降额应用)；Installation environment: Far away active gas,Combustible gas, oil drop, ash.altitude≤1000m(1000~4000m，Derating use)；存贮问题：-20℃~ +60℃，≤85%RH（无凝露）。Storage Condition: -20℃~ +60℃，≤85%RH(No dewing). |
| 心轴电动机扭矩(Max axial force) | 36N | ||
| 电绝缘官阶(Insulation Class) | B | ||
| 防范品质(Protection level) | IP30 | ||
| 标段(Unit) | FL86SC40 | FL86SC85 | FL86SC120 | |
| 相感应电流 (Phase current) | A | 6 | 6 | 6 |

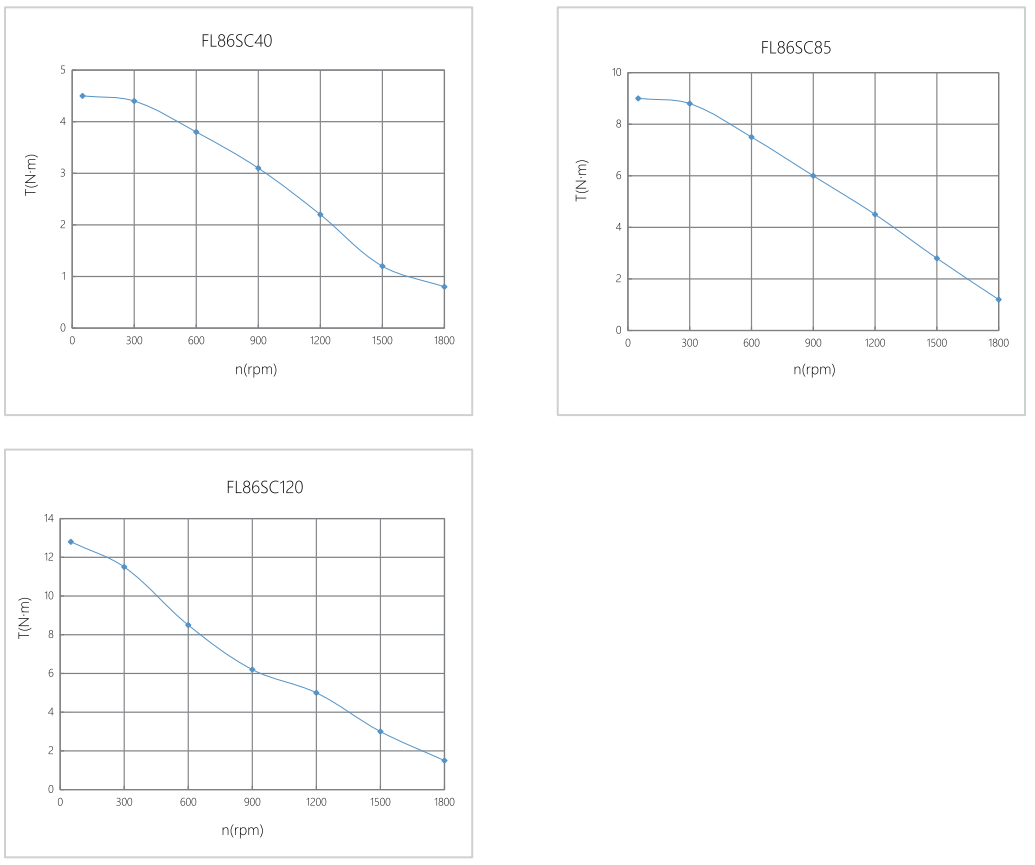

| 努力扭矩 (Holding torque) | N·m | 4 | 8.5 | 12 |
| 极高转动速度 (Speed ) | rpm | 1800 | 1800 | 1800 |
| 识别码器 (Encoder) | 1000cpr光電增长式商品编号器1000cpr incremental optical encoder | |||
| 跳出惯量 (Rotor inertia) | g.cm2 | 1400 | 2700 | 4000 |

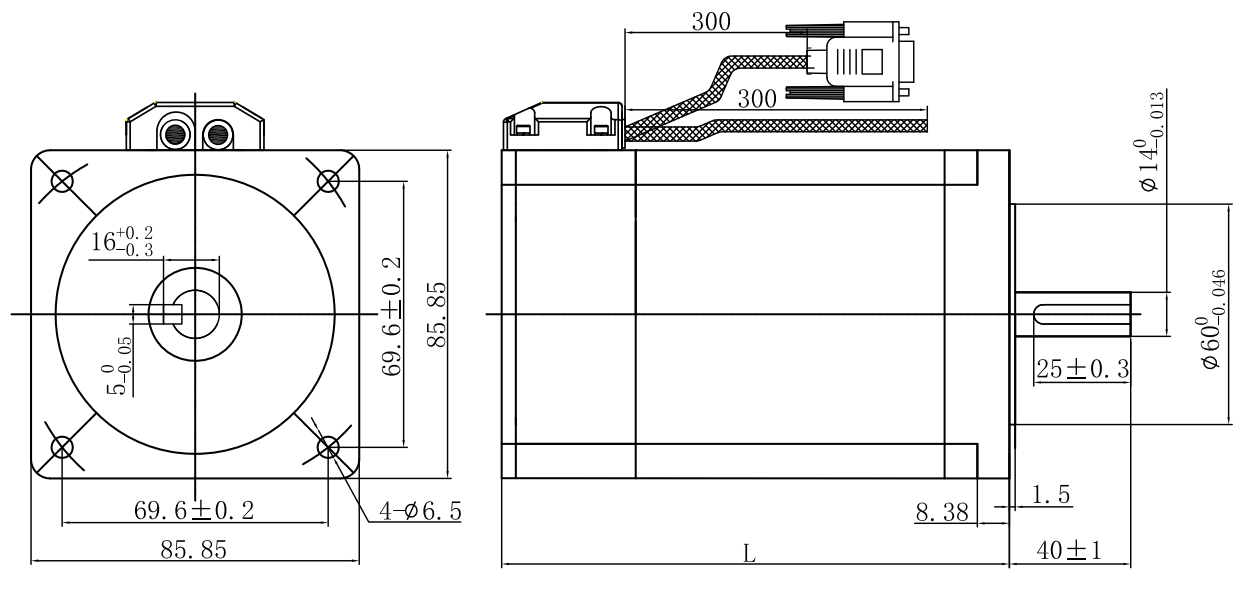

| 产品设备宽度 (Motor Length) L | mm | 96 | 133 | 171 |
| 重量 (Weight ) | Kg | 2.5 | 3.8 | 5.5 |
| 序列号No. | 找出线色彩对比Lead Color | 引出来线款式Lead Gauge | 作用与功效Function | 声明函Description |
| 3 | 红灰黑色(Red/White) | Three rows of15PIN D-SUB | GND | Signal Power negative |
| 2 | 乳白色(Red) | VCC:+5VDC | Signal Power positive | |
| 13 | 深蓝色(Blue) | EA- | Two-channel differential signal (Three-channel differential signal can be provided). | |
| 1 | 蓝玄色(Blue/Black) | EA+ | ||
| 12 | 玄色(Black) | EB- | ||
| 11 | 黑黄色（Black/White) | EB+ | ||
| 1 | 浅黄色(Yellow) | YGZF-S 4*0.75 Cable | A相(Phase A) | |
| 2 | 翠绿色(Green) | C相(Phase C) | ||
| 3 | 白(Red) | B相(Phase B) | ||
| 4 | 玄色(Blake) | D相(Phase D) |
换代机电设备才可以依照规定投资者需用制定。
The motor can be designed &manufactured with customized request.
| FL86SC85 | 239.54 KB |
|
| FL86SC40 | 239.77 KB |
|
| FL86SC120 | 239.76 KB |
|
