约见区域合作| Ratio加速器比 | 3 | 7.5 | 12.5 | 15 | 25 | 30 | 50 | 75 | 90 | 100 | 120 | 150 | |||
| Weight（份量） | 0.24kg | 0.3kg | |||||||||||||
| Number of gear trains促进级数 | 2 | 3 | 4 | ||||||||||||
| Nominal torque木制托盘扭矩 | 10N.m | ||||||||||||||
| Ultimate torque极致电动机扭矩 | 15N.m | ||||||||||||||
| Efficiency作用 | 81% | 73% | 66% | ||||||||||||
| Backlash回差 | 4 deg | 3.5deg | 2.5deg | ||||||||||||
| Ratio加快速度比 | 3 | 7.5 | 12.5 | 15 | 25 | 30 | 50 | 75 | 90 | 100 | 120 | 150 | |
| FL57STH41-60JB | Torque(N.m) (at 300rpm)惯量(N.m) (在 300rpm) | 1.02 | 2.55 | 4.25 | 5.1 | 7.66 | 9.19 | --- | --- | --- | --- | --- | --- |
| speed(rpm)转速比(rpm) | 100 | 40 | 24 | 20 | 12 | 10 | --- | --- | --- | --- | --- | --- | |
| FL57STH51-60JB | Torque(N.m) (at 300rpm)电动机扭矩(N.m) (在 300rpm) | 1.78 | 4.25 | 7.08 | 8.5 | --- | --- | --- | --- | --- | --- | --- | --- |
| speed(rpm)转动速度(rpm) | 100 | 40 | 24 | 20 | --- | --- | --- | --- | --- | --- | --- | --- | |
| FL57STH56-60JB | Torque(N.m) (at 300rpm)传动比(N.m) (在 300rpm) | 1.84 | 4.61 | 7.69 | 9.23 | --- | --- | --- | --- | --- | --- | --- | --- |
| speed(rpm)带速(rpm) | 100 | 40 | 24 | 20 | --- | --- | --- | --- | --- | --- | --- | --- | |
| FL57STH76-60JB | Torque(N.m) (at 300rpm)传动比(N.m) (在 300rpm) | 2.91 | 7.29 | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- |
| speed(rpm)速比(rpm) | 100 | 40 | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | |

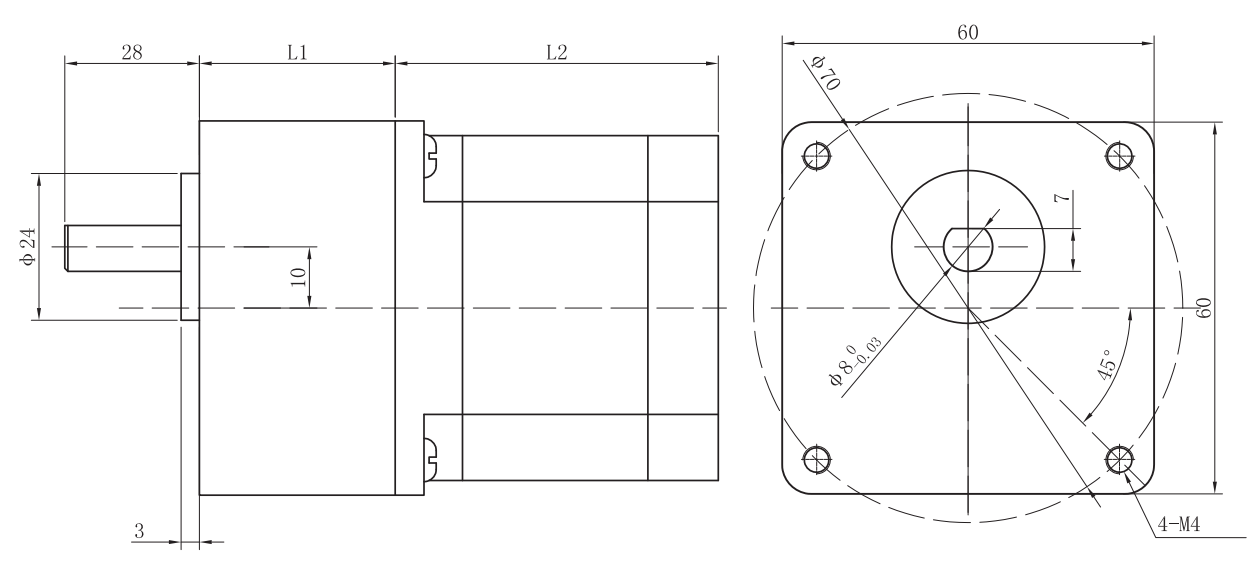

| RATIO加快比 | L2(mm) | L1(mm) | |||
| FL57STH41-60JB | FL57STH51-60JB | FL57STH56-60JB | FL57STH76-60JB | ||
| 3---15 | 40 | 50 | 55 | 75 | 32 |
| 25---150 | 40 | ||||
改款机电工程专业是可以，并按照企业客户要有高端定制。
The motor can be designed &manufactured with customized request.
