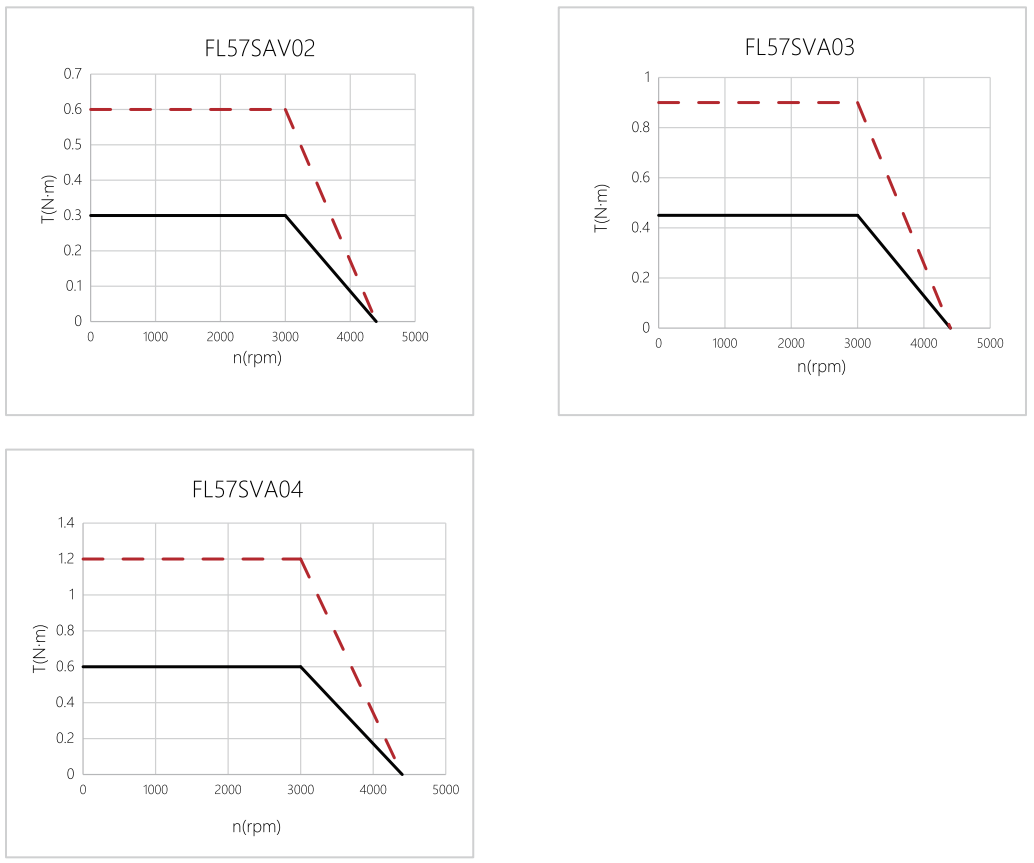

技术主要参数

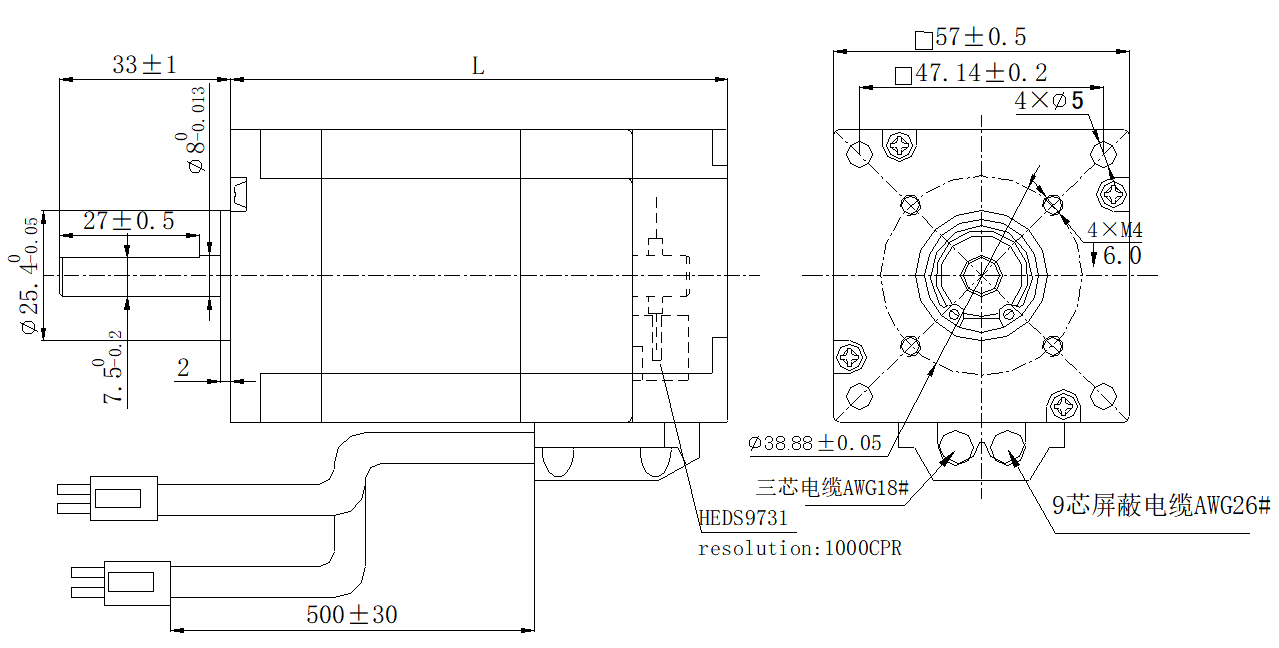

形壮外形尺寸
文件下载百度
热情接待合作| 特征（Characteristic） | 参数(Parameter) | ||
| 识别码器范列(Encoder type) | 1、微电子识别码器 Optical encoder2、磁代码器 Magnetic encoder3、扭曲干式变压器Resolver提示：种分辩率可以选择，增量配电网式、相应值式可以选择。Note: Multiple resolutions are available；Incremental and absolute values are available. | ||
| 径向阻抗(Max radial force ) | 115N@20mm from the flange | 问题条件Environmental conditions | 采用问题工作温度： -20℃~ +40℃；Temperature: -20℃~ +40℃巧用现象温度：≤90%RH（无凝露）；Relative humidity: ≤90%RH(No dewing)装备状态：一别破坏、可燃性的气体，油滴，颗粒物，海拔高度≤1000m(1000~4000m，降额采取)；Installation environment: Far away active gas,Combustible gas, oil drop, ash.altitude≤1000m(1000~4000m，Derating use)；存储器实际情况：-20℃~ +60℃，≤85%RH（无凝露）。Storage Condition: -20℃~ +60℃，≤85%RH(No dewing). |
| 径向负债(Max axial force ) | 45N | ||
| 接地品质(Insulation Class) | B | ||
| 安全防护网品阶(Protection level) | IP30 | ||
| 單元(Unit) | FL57SVA02 | FL57SVA03 | FL57SVA04 | |
| 附加电流(Rated voltage) | VDC | 36 | 36 | 36 |
| 加倍带速(Rated speed) | RPM | 3000 | 3000 | 3000 |
| 减半电动机扭矩(Rated torque) | N·m | 0.3 | 0.45 | 0.6 |
| 木制托盘工作电流(Rated current) | A | 94 | 141 | 188 |
| 满载带速(no load speed) | RPM | 4400 | 4400 | 4400 |
| 基线传动比(Peak torque) | N·m | 0.9 | 1.35 | 1.8 |
| 顶值瞬时电流(Peak current) | A | 12.6 | 16.2 | 22.5 |
| 电容(Line to line resistance) | Ω | 1.2 | 0.8 | 0.5 |
| 电感(Line to line inductance) | mH | 1.2 | 0.8 | 0.6 |
| 反电势指数(Back EMF) | V/Krpm | 5.6 | 5.6 | 5.7 |
| 惯量弹性系数(Torque constant) | Nm/A | 0.075 | 0.075 | 0.08 |
| 极数(Number of poles) | 8 | |||
| 数字器(Encoder) | CPR | 1000 | ||
| 移动惯量(Rotor inertia) | g.cm2 | 210 | 320 | 430 |
| 机壳尺寸 (Motor length) L | mm | 76 | 96 | 116 |
| 重量(Weight) | Kg | 0.8 | 1.0 | 1.2 |
| 项目编号No. | 找出线色相Lead Color | 导入线具体型号Lead Gauge | 药用价值Function | 声明范文Description |
| 1 | 红黄白色(Red/White) | CableAWG26 | GND | Signal Power negative |
| 2 | 黄白色( Red) | VCC:+5VDC | Signal Power positive | |
| 3 | 蓝色系(Blue) | EA- | Two-channel differential signal (Three-channel differential signal can be provided). | |
| 4 | 蓝玄色(Blue/Black) | EA+ | ||
| 5 | 玄色(Black) | EB- | ||
| 6 | 黑灰白色(Black/White) | EB+ | ||
| 7 | 深褐色(Brown) | 霍尔HALL A | ||
| 8 | 红色(Orange) | 霍尔HALL B | ||
| 9 | 橙黄色(Yellow) | 霍尔HALL C | ||
| 1 | 紫色(Yellow) | CableAWG18 | U相(Phase U) | |
| 2 | 黄白色(Red) | V相(Phase V) | ||
| 3 | 玄色(Black) | W相(Phase W) |
这一款机械要可以依照用户需求开发。
The motor can be designed &manufactured with customized request.
| FL57SVA02-E1 | 185.25 KB |
|
| FL57SVA03-E1 | 185.87 KB |
|
| FL57SVA04-E1-02 | 185.99 KB |
|
