学手艺技术指标

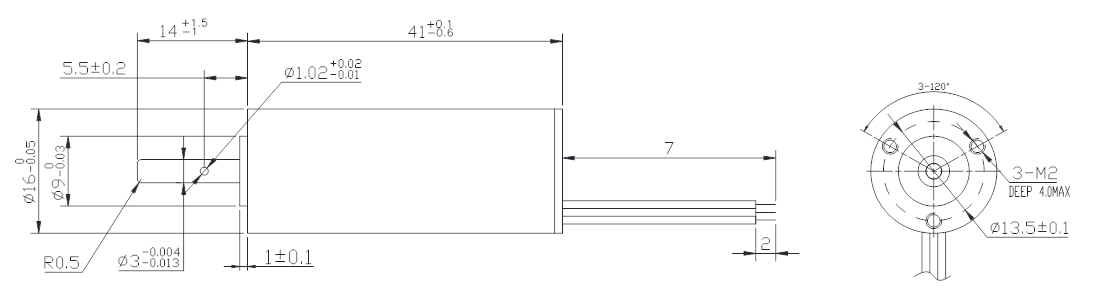

造型长度
物料下载下载
洽谈协调| 91吃瓜网 绕线毗连体例 ( Winding Type ) | 星形 ( Star connection) |
| 介电抗弯强度 ( Dielectric Strength ) | 600VAC/1S |
| 绝缘内阻内阻( Insulation Resistance ) | 100MΩ, 500VDC |
| 现象气温 ( Ambient Temperature ) | -20°C ~ +50°C |
| 隔热等级 (Insulation Class) | Class B |
| 径向接缝处 ( Radial Play ) | 0.02mm@4N |
| 径向缝隙 ( Axial Play ) | 0.3mm@4N |
| 最好径向91吃瓜网 负载 ( Max radial force ) | 15N距法兰盘10mm( 10mm From the flange) |
| 较大心轴91吃瓜网 负载 ( Max axial force) | 5N |

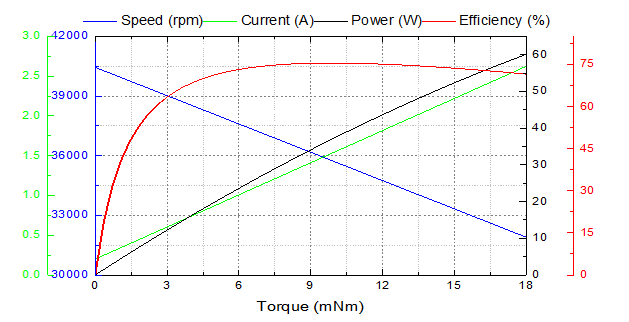

| 单 位 (Unit) | FL16SBL40-32V-400-21A-5 | FL16SBL40-6V-12000-X | |
| 极数 ( Number of poles ) | 2 | 2 | |
| 相数 ( Number of phases ) | 3 | 3 | |
| 满载速比 (No load speed) | RPM | 40000 | 12000 |
| 轻载直流电 (No load current) | A | 0.2 | 0.2 |
| 减半电动机扭矩 ( Rated torque) | mN.m | 6 | 2.5 |
| 双倍电压电流 (Rated current) | A | 1 | 0.5 |
| 三倍浓度 ( Rated speed ) | RPM | 35000 | 10000 |
| 附加公率 ( Rated power ) | W | 22 | 2.6 |
| 双倍效力待定 (Rated efficiency) | % | 80% | 75 |
| 最高值起动转矩 ( Peak torque ) | mN.m | 18 | 7.5 |
| 基线工作电流 ( Peak current ) | A | 2.4 | 1.5 |
| 线热敏电阻 ( Line to line resistance ) | ohms@20℃ | 2.25 | 1.4 |
| 线电感 ( Line to line inductance ) | mH | 0.13 | 0.07 |
| 惯量常数 ( Torque constant ) | mNm/A | 7.43 | 4.7 |
| 反电势 ( Back EMF ) | Vrms/Krpm | 0.55 | 0.35 |
| 机壳-状况热导率( Housing - Ambient thermal resistance) | K/W | 8.4 | |
| 机械设备热阶段常数(Motor thermal time constant) | S | 762 | |
| 91吃瓜网 定子上限同意温差(Max temperature of winding) | ℃ | 155 | |
| 电器情况常数(Electrical time constant) | ms | 0.057 |
| 线色调( Color) | 线主要参数(Type) | 作用( Functions) |
| 紫色(Yellow) | UL1430 AWG26 | U相 ( Phase U ) |
| 粉色( Red) | V相 ( Phase V ) | |
| 玄色(Black) | W相 ( Phase W ) |
这一款机电专业都可以依据潜在客户想要定制化。
The motor can be designed &manufactured with customized request.
| FL16SBL40-24V-300-10A | 123.42 KB |
|
| FL16SBL56-24V-3000-24A 样册电子设计图纸 | 123.31 KB |
|
| FL16SBL28-12V-270-4A | 130.47 KB |
|
