FL110SV

结果在期间步进驱动器汽车电器

110mm伺服机电,1500-2000W,48VDC,220VDC

选件:

特殊性（Characteristic）	运作(Parameter)
编码查询器样例(Encoder type)	1、光电材料编写代码器 Optical encoder2、磁商品光电编码器 Magnetic encoder3、弯曲电力变压器Resolver提示：多种多样分辩率能选择，增减式、相值式能选择。Note: Multiple resolutions are available；Incremental and absolute values are available.
径向91吃瓜网负载( Max radial force )	630N @ 20mm from the flange	现状先决条件Environmental conditions	运用状态温度因素： -20℃~ +50℃；Temperature: -20℃~ +50℃利于实际情况含水率：≤90%RH（无凝露）；Relative humidity: ≤90%RH(No dewing)设备条件：远离腐蚀、可燃性混合气体，油滴，玦尘，海拔有≤1000m(1000~4000m，降额合理利用)；Installation environment: Far away active gas,Combustible gas, oil drop, ash.altitude≤1000m(1000~4000m，Derating use)；数据库状况：-20℃~ +85℃，≤85%RH（无凝露）。Storage Condition: -20℃~ +85℃，≤85%RH(No dewing).
径向负荷( Max axial force )	315N
隔热官阶(Insulation Class)	Class B
预防品阶(Protection level)	IP65

示例 (Model）	摸块(Unit)	FL110SV150		FL110SV200
30%瓦数(Rated power) Pn	W	1500		2000
特别交流电压(Rated voltage) U	V	220VAC	48VDC	220VAC	48VDC
木制托盘带速(Rated speed) nn	RPM	3000	3000	3000	3000
加倍扭矩(Rated torque) Tn	N·m	4.77	4.77	6.37	6.37
增加电压(Rated current) In	A	7.6	43.4	10.1	58
大带速(Maximum speed) nmax	RPM	5000	5000	5000	5000
明显转距(Maximum torque) Tm	N·m	14.3	14.3	19.1	19.1
较大感应电流(Maximum current) Im	A	22.8	130	30.3	174
内阻(Line to line resistance) RL	Ω	0.36	0.01	0.29	0.009
电感(Line to line inductance) LL	mH	5.6	0.16	4.8	0.145
反电势常数(Back EMF) Ke	V/Krpm	38.1	6.35	38.1	6.63
扭矩标准值(Torque constant) Kt	Nm/A	0.63	0.11	0.63	0.11
电当时常数(Electrical time constant) τe	ms	15	16	16.5	16.1
器机时分常数（Mechanical time constant) τm	ms	0.48	0.48	0.51	0.53
弹出惯量(Rotor inertia) Jm0	kg.cm²	3.1	3.1	4.1	4.1
弹出惯量带驻车制动系统(Rotor inertia with brake) Jm1	kg.cm²	3.47	3.47	4.47	4.47
极数(Number of poles)		10	10	10	10
项目绝对值编码器(Encoder)		2500ppr光电材料标识号器（增加量式）2500p/rev incremental encoder
屏幕的长度(Motor length) L1	mm	151.5	156.5	168.5		173.5
机壳段长度带行车鼓式制动器(Motor length with brake) L2	mm	187	192	204		209
量用 (Weight)	Kg	5	5.2	6.7		6.9
净重带行车制动器(Weight with brake)	Kg	6	6.2	7.7		7.9

能源系统线的毗连器布线界说见cad图纸。编号规则器的毗连器布线界说见图纸尺寸。

该机电工程还可以确定客服想要定做。

The motor can be designed &manufactured with customized request.

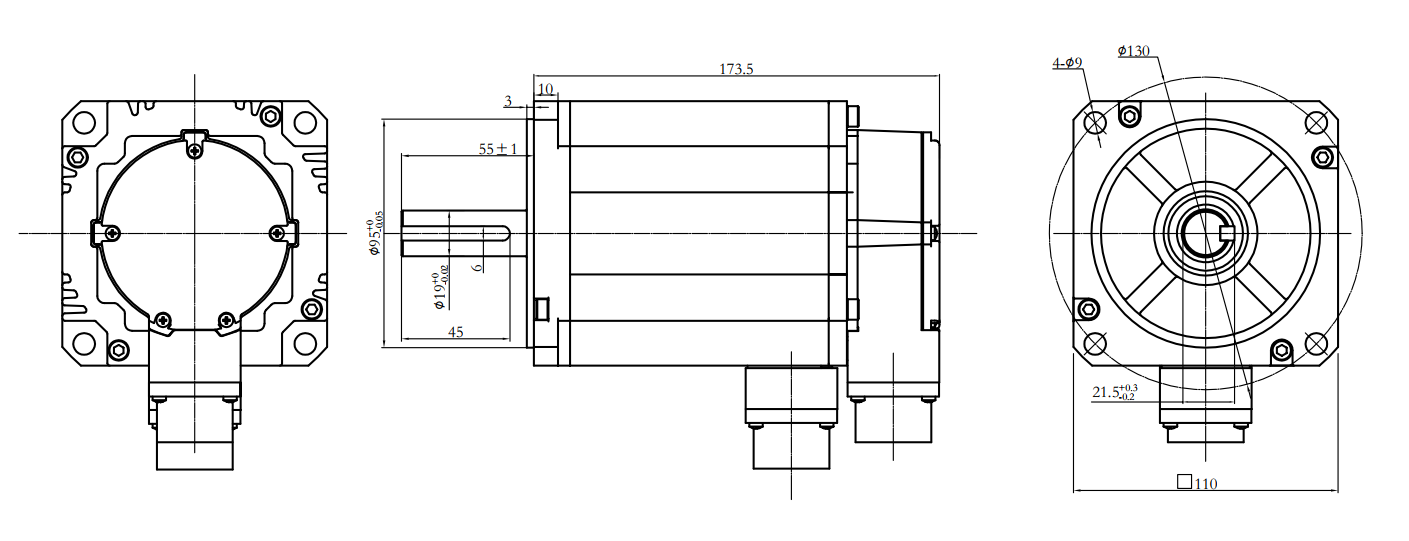

机电尺寸

材料下载

FL110SV150-220V-30EA1	99.94 KB
FL110SV200-96V-30EA1	103.79 KB
